The Web UI tour

The Web UI is the same control surface as the TUI, rendered in your browser and updated live over Server-Sent Events. It ships inside the daemon binary — no separate static-asset server, no CDN, no extra port. Browse to http://<host>:<port> (default http://127.0.0.1:9477) and you’re there.

The dashboard is intentionally small and read-mostly: trigger and restart are the only mutations. Everything else is observation — runwisp.toml stays the source of truth.

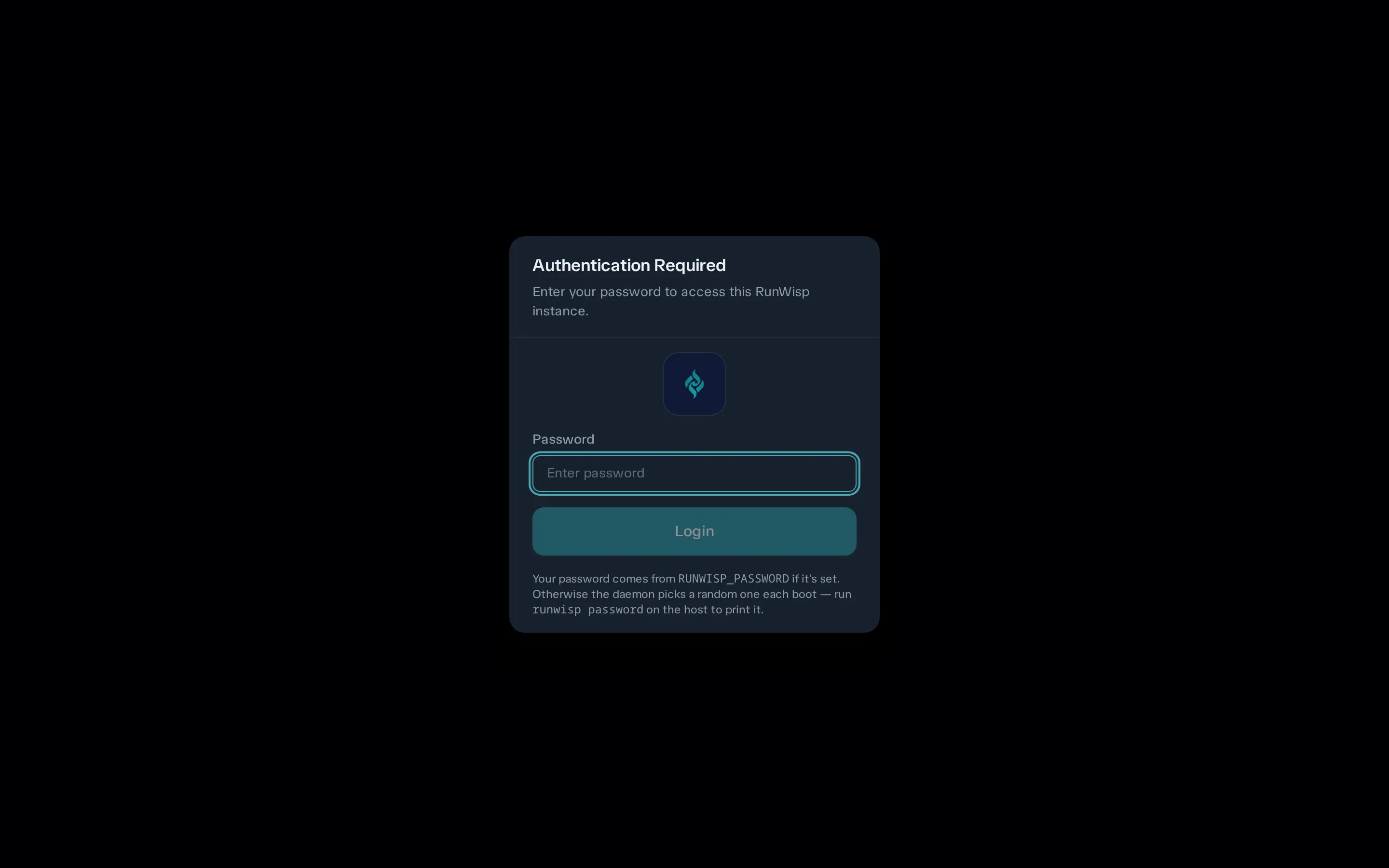

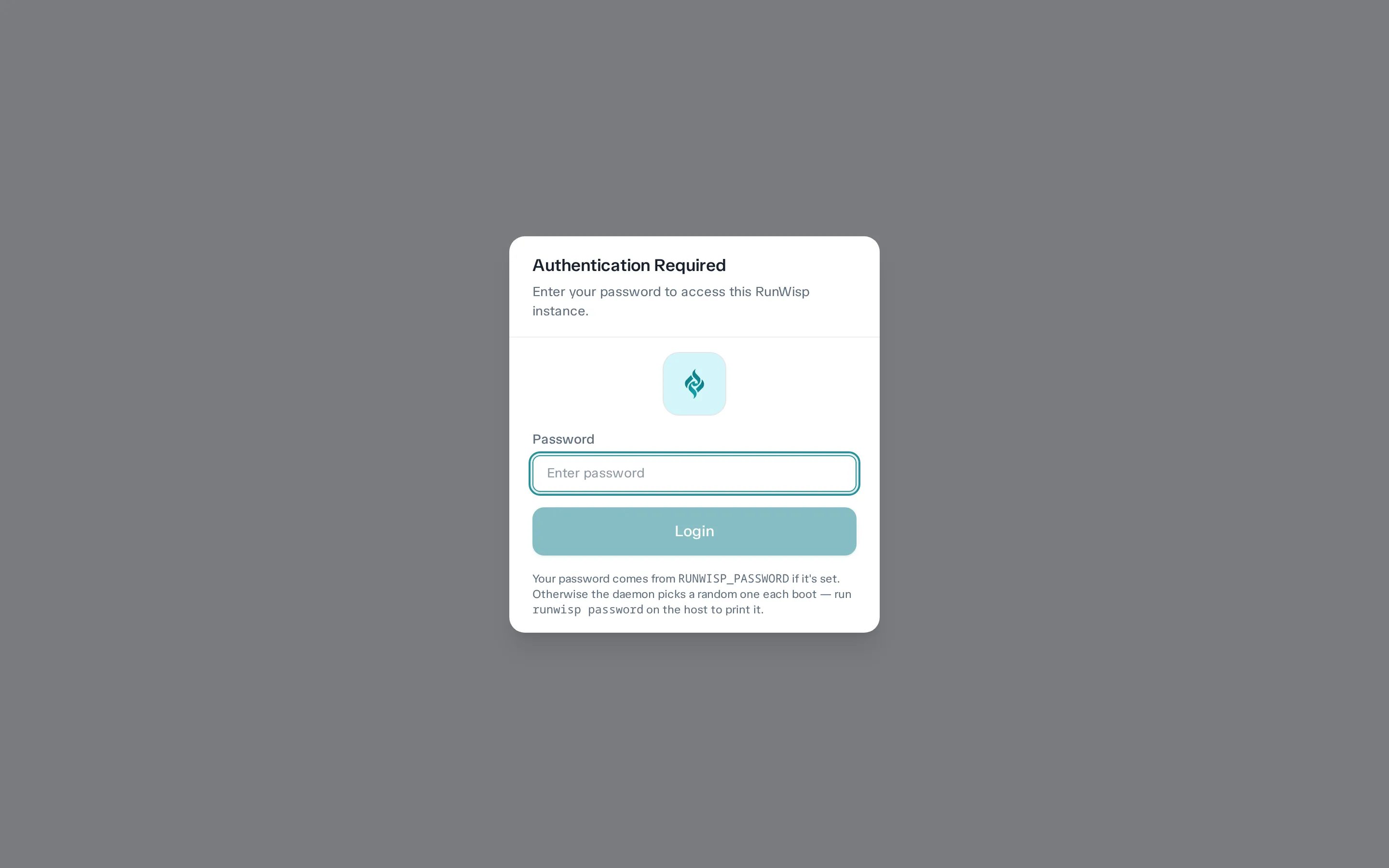

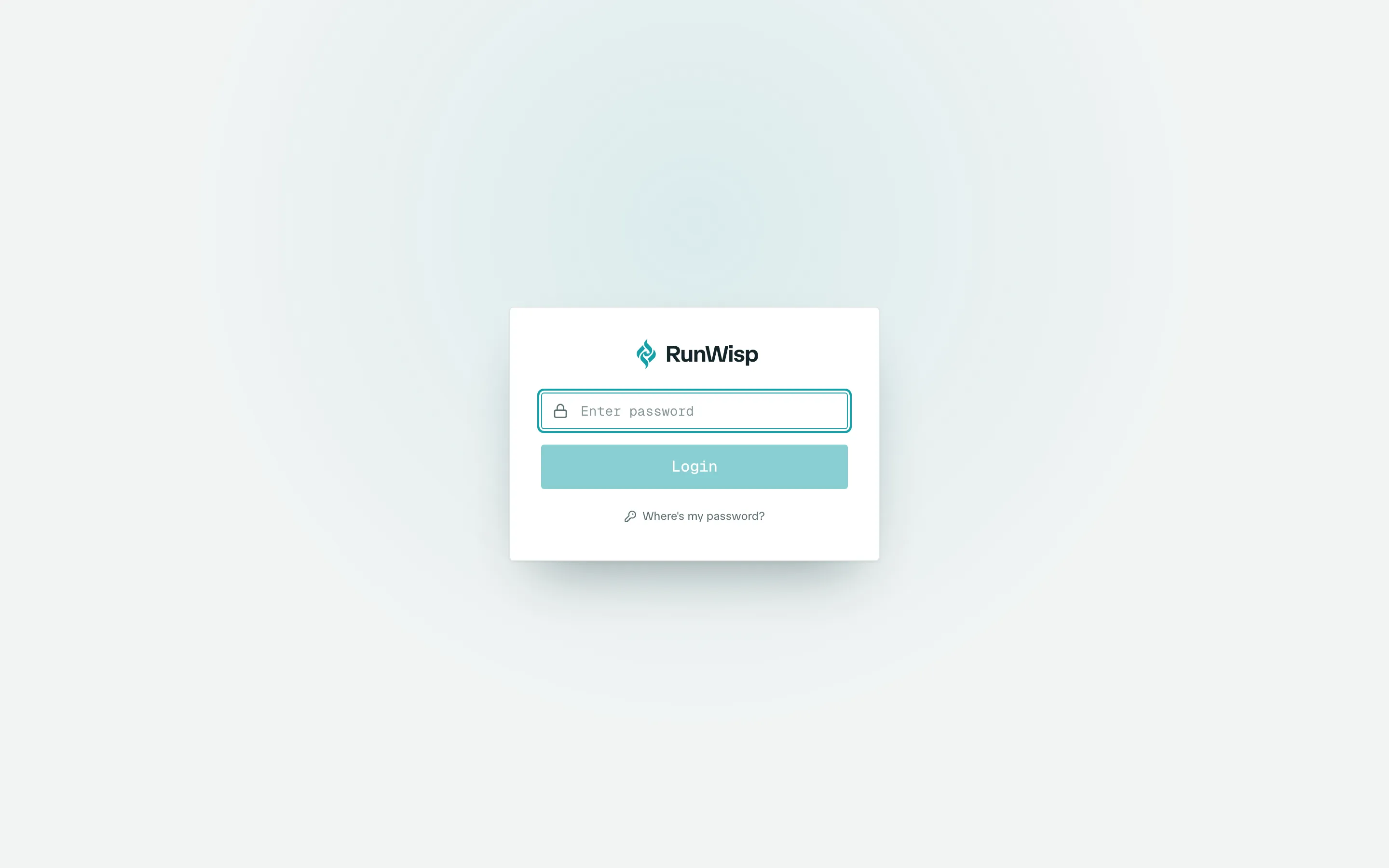

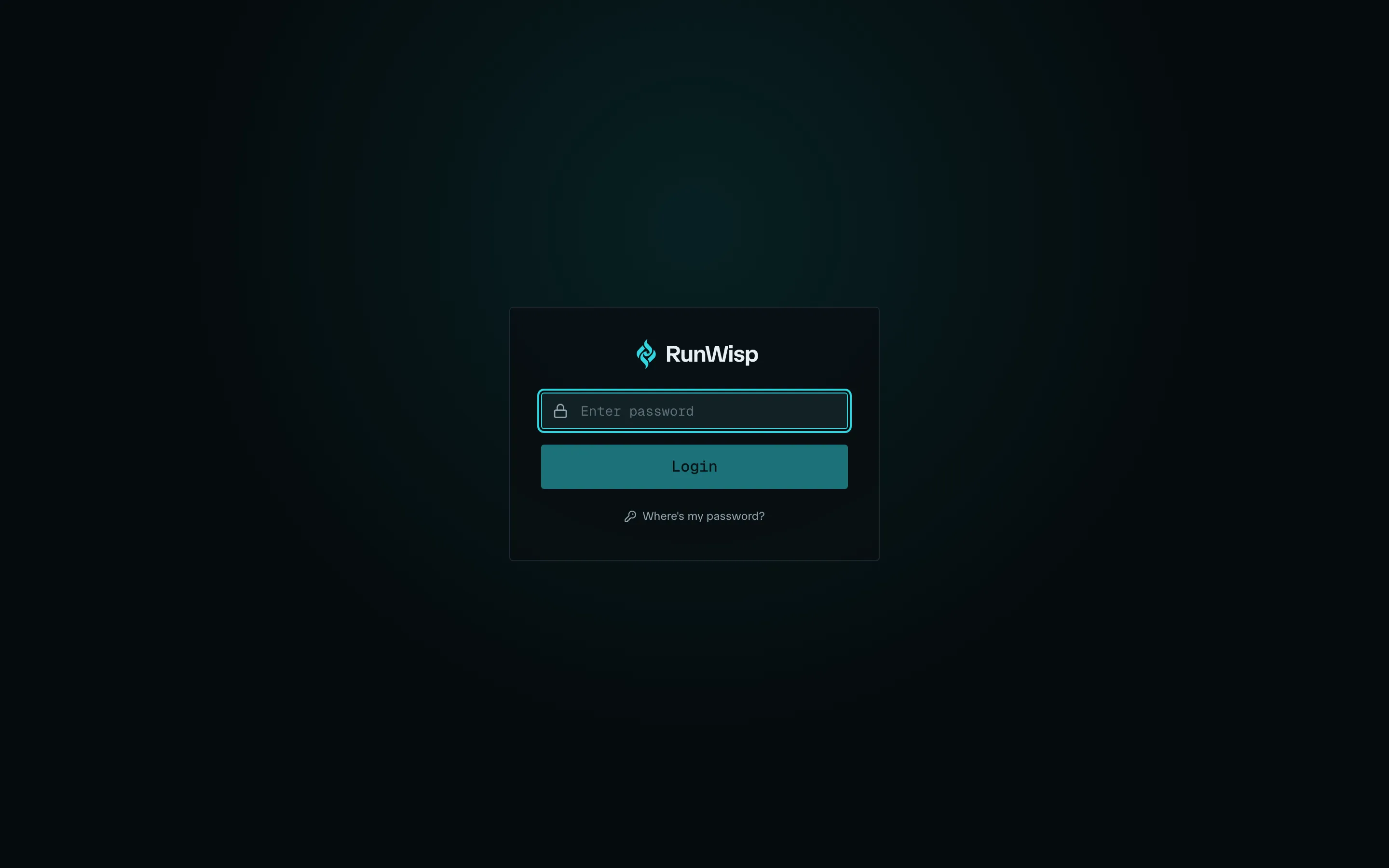

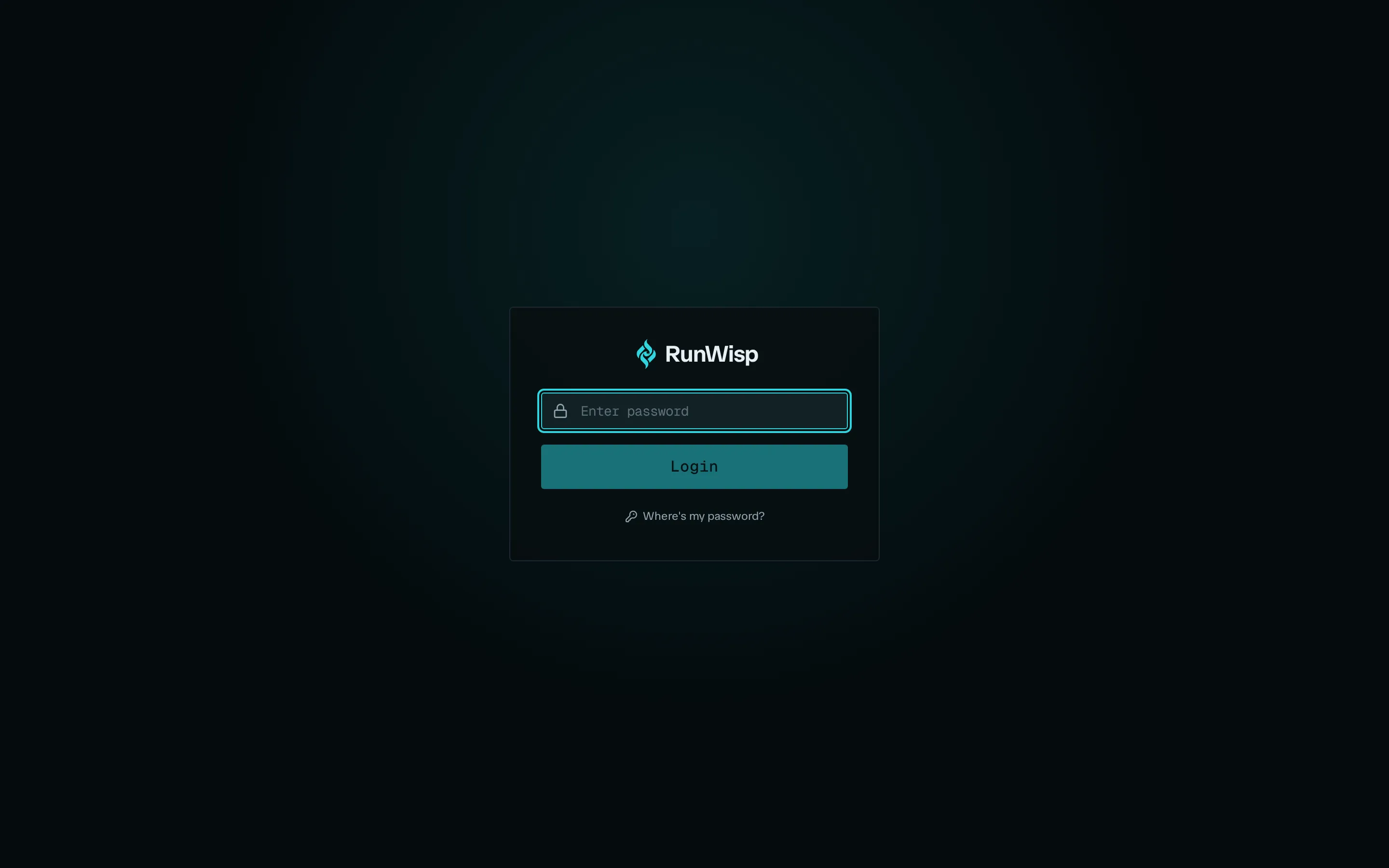

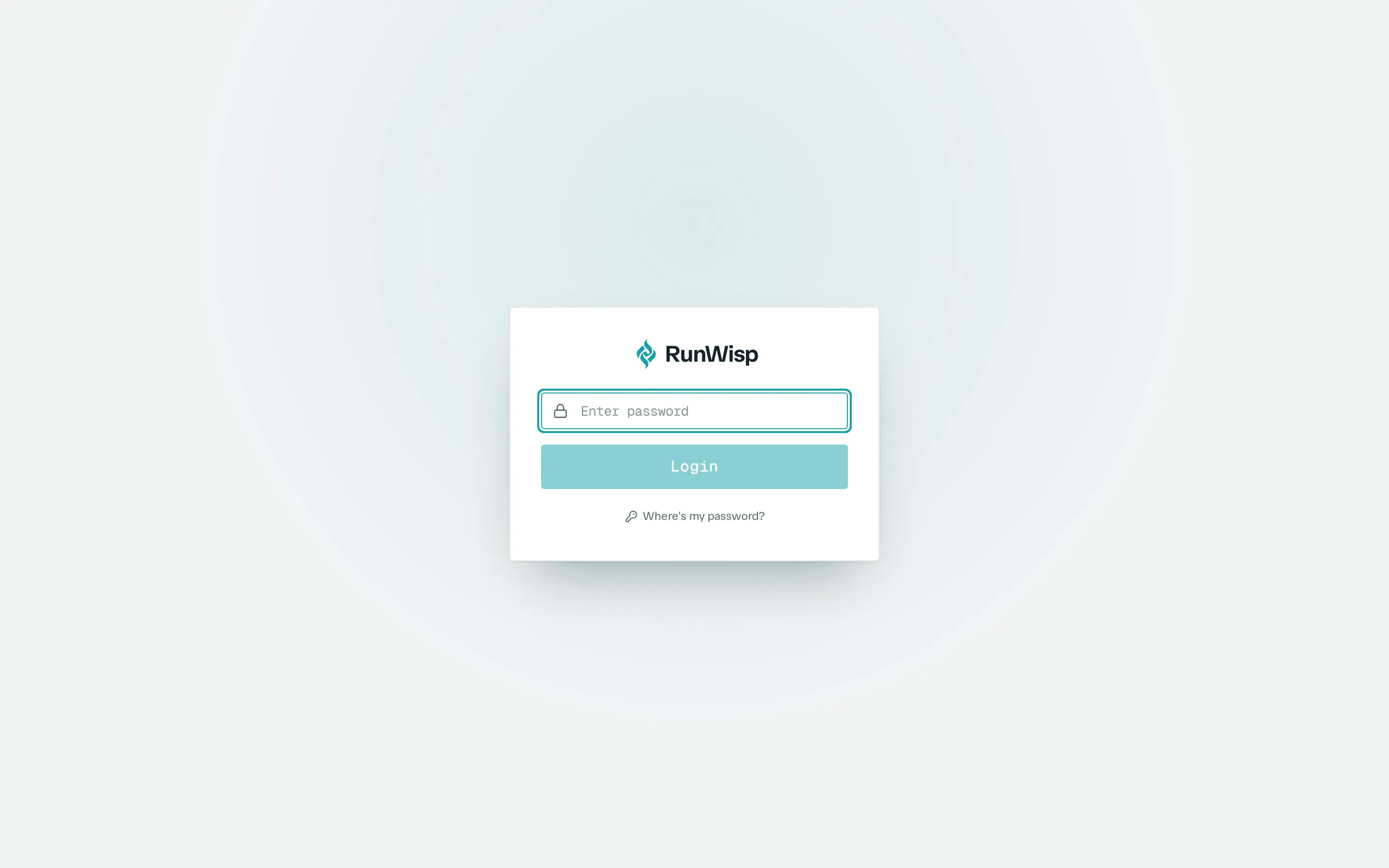

Logging in

You’ll see a single password field on first visit. There’s no username — RunWisp is single-operator. Type the password and submit.

Behind the scenes the page does a CHAP handshake: it asks the daemon for a nonce, computes SHA256(password + ":" + nonce), sends the digest, and on success stores a JWT in localStorage under the key runwisp_token. The password itself never crosses the wire.

The token lasts 24 hours. After that, you log in again. Five wrong passwords from your IP in five minutes triggers a rate-limit lockout — wait it out or restart the daemon.

The layout

Three panes, like the TUI:

┌──────────────────┬──────────────────────────────────────────────────────┐
│  RunWisp         │  RunWisp / Overview                          🔔  3  │
│  ─────           │  ────────────────────────────────────────────────   │
│  Overview        │                                                     │
│  All Runs        │  ┌─ Daemon ──────────────────┐ ┌─ Stats ──────┐    │
│                  │  │ host  builder-01          │ │ active   12  │    │
│  TASKS           │  │ ver   v0.4.0              │ │ success  98% │    │
│  backup-postgres │  │ up    3h 12m              │ │ cpu      4%  │    │
│  smoke-test      │  └───────────────────────────┘ └──────────────┘    │
│                  │                                                     │
│  SERVICES        │  Tasks ─ All · Attention · Running · Scheduled      │
│  api-worker (×3) │  ─────────────                                      │
│                  │  ✓ backup-postgres   12s   00:00 daily              │
│                  │  ✗ smoke-test         2s   manual                   │
│                  │  ⏵ api-worker#0      —    service                   │
│  ● connected     │                                                     │
└──────────────────┴──────────────────────────────────────────────────────┘

• Sidebar — left, white, with the brand at the top, the two primary links (Overview, All Runs), then your tasks and services grouped by group =. The footer shows a live connection indicator and the daemon URL.
• Header — top, a breadcrumb (RunWisp / <page>), and a notifications bell with unread count.
• Main pane — everything else.

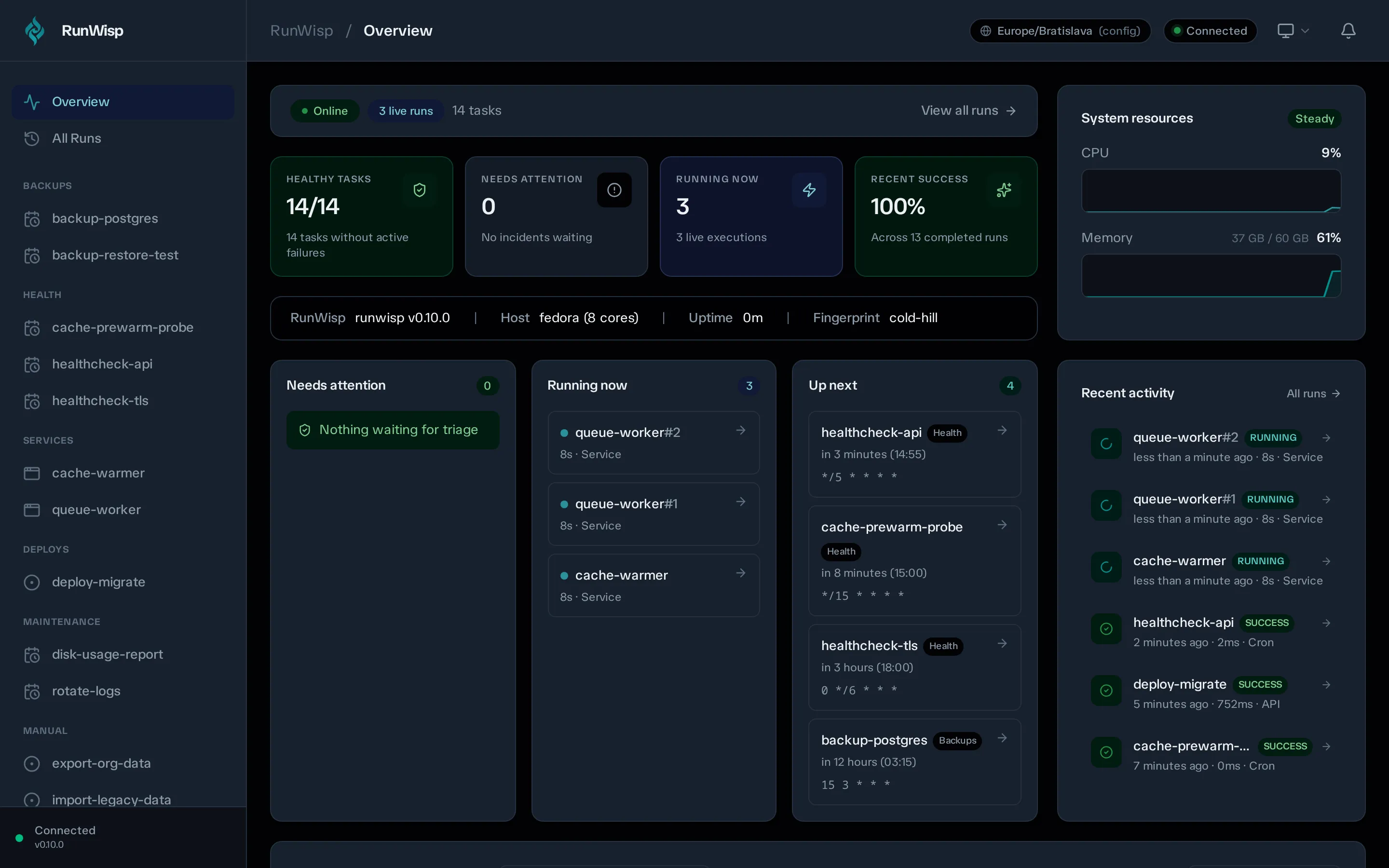

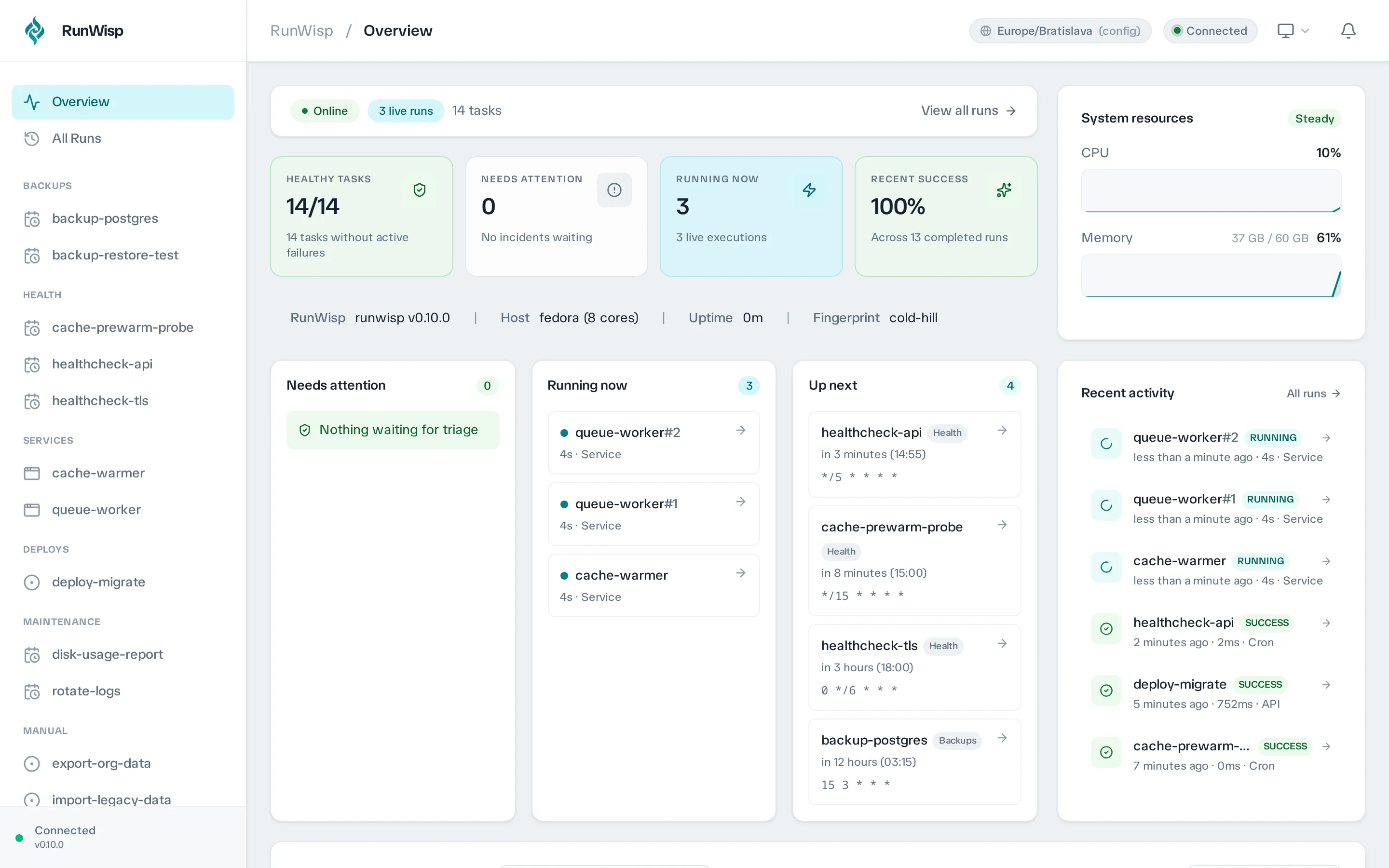

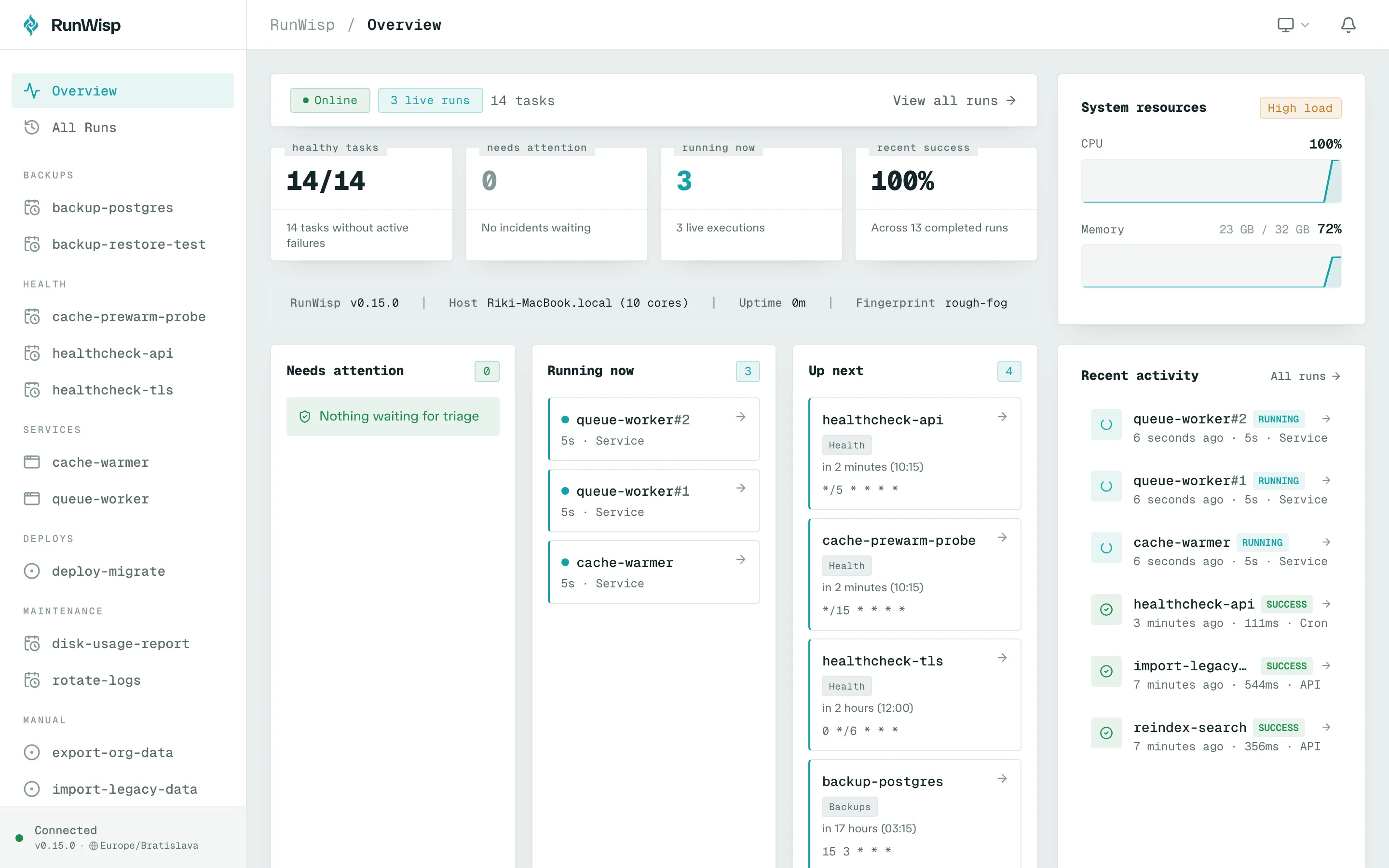

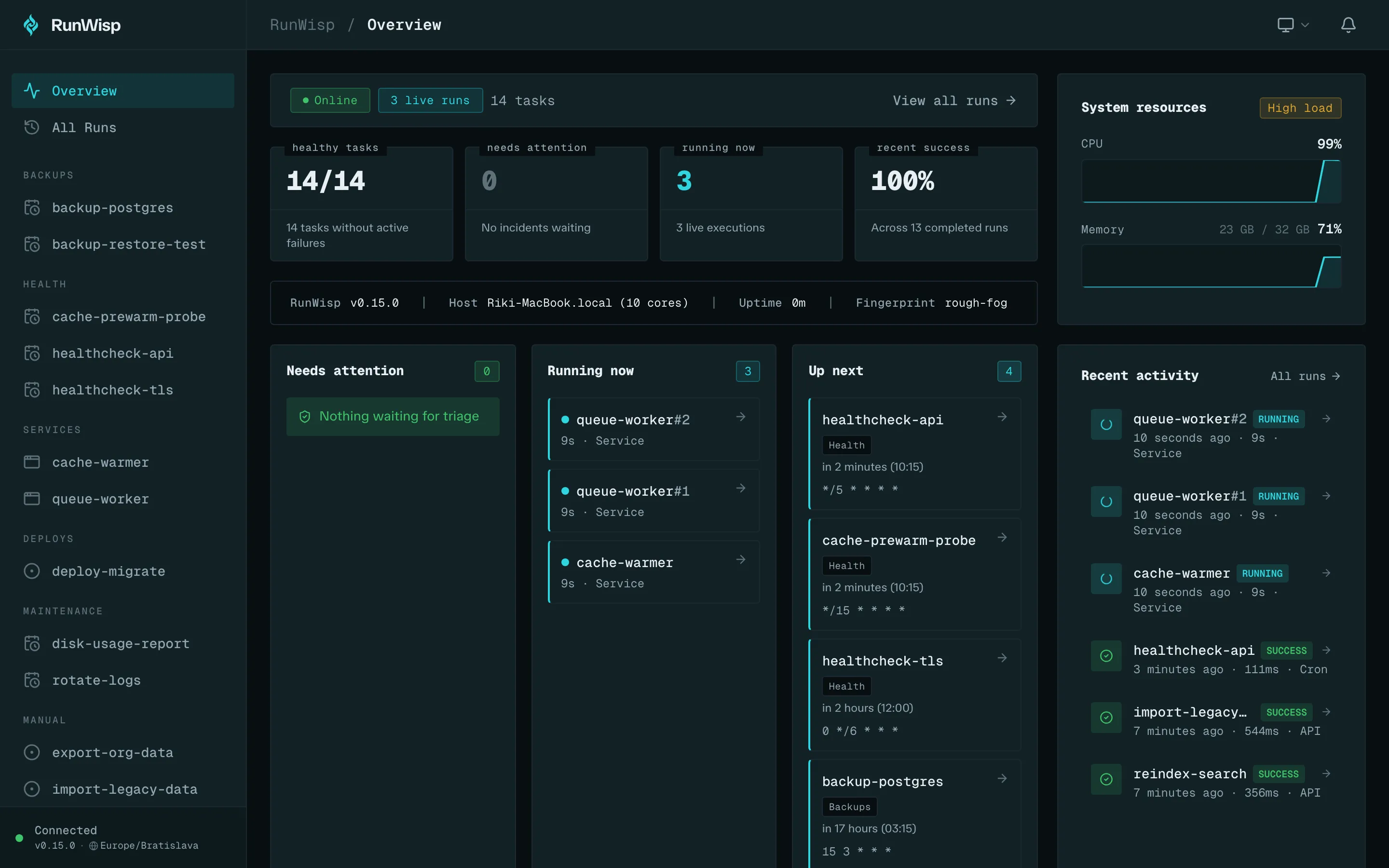

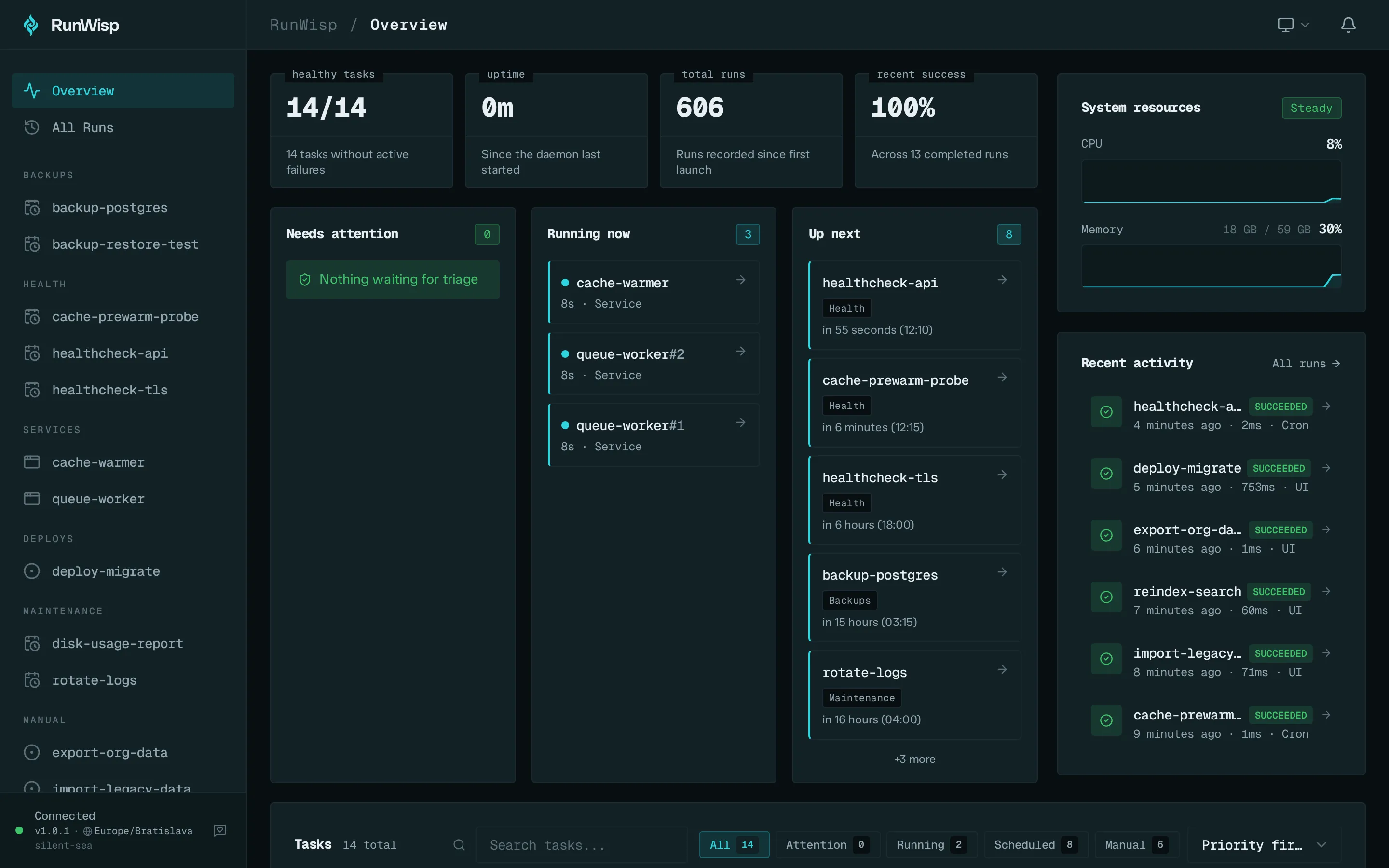

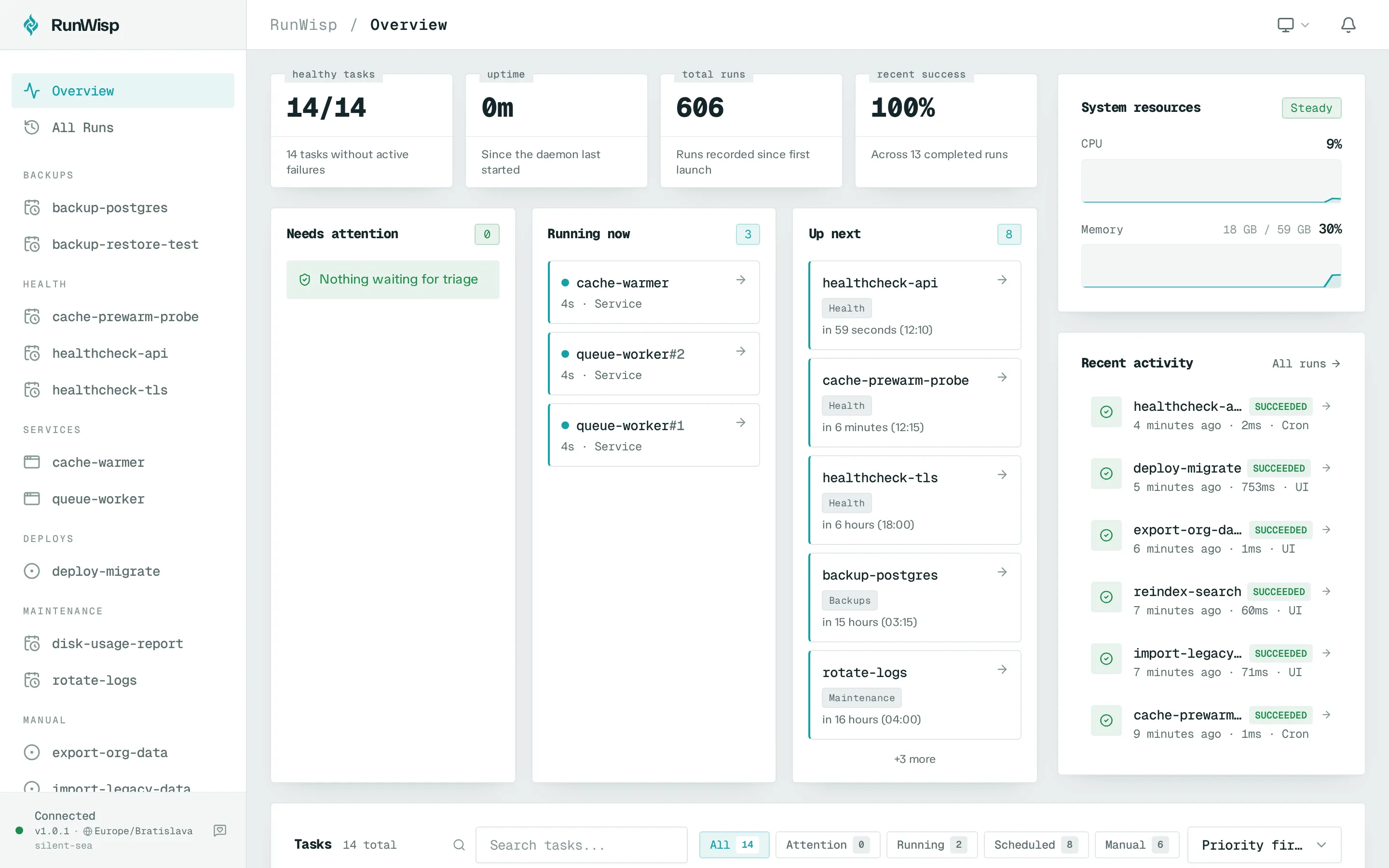

Overview (/)

The landing page after login. Four panels:

1. Daemon hero — name, version, uptime, host, OS, CPU/RAM use.
2. Stats — active task count, success rate over the recent window, CPU and memory percentages.
3. Task overview — filter tabs (All · Attention · Running · Scheduled · Manual) and a sort selector. Up to four tasks per bucket so you see the most-relevant slice without scrolling.
4. Recent activity — the six most recent runs across all tasks, updated live as new ones complete.

Below them, a small CPU / memory sparkline strip refreshes every two seconds.

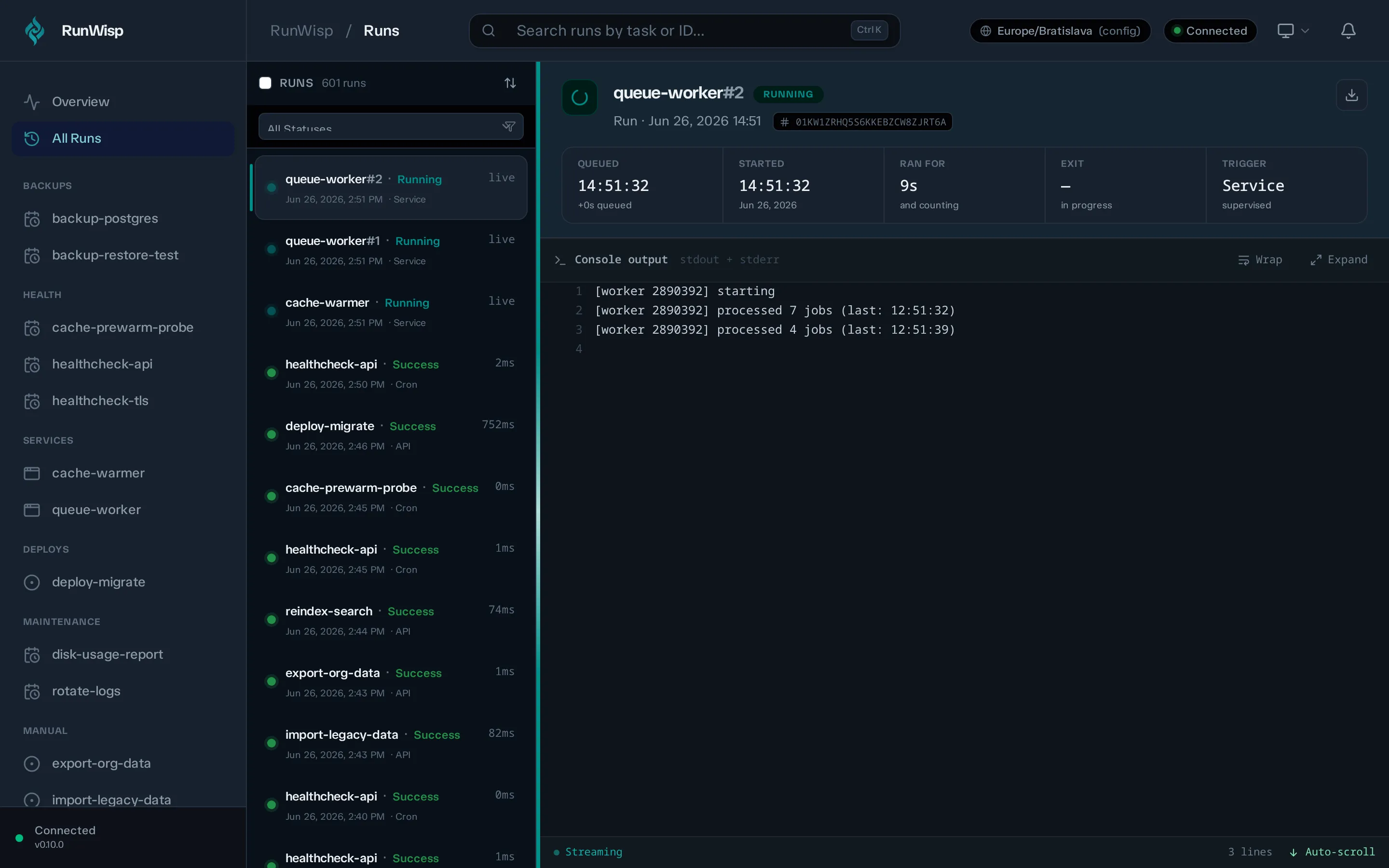

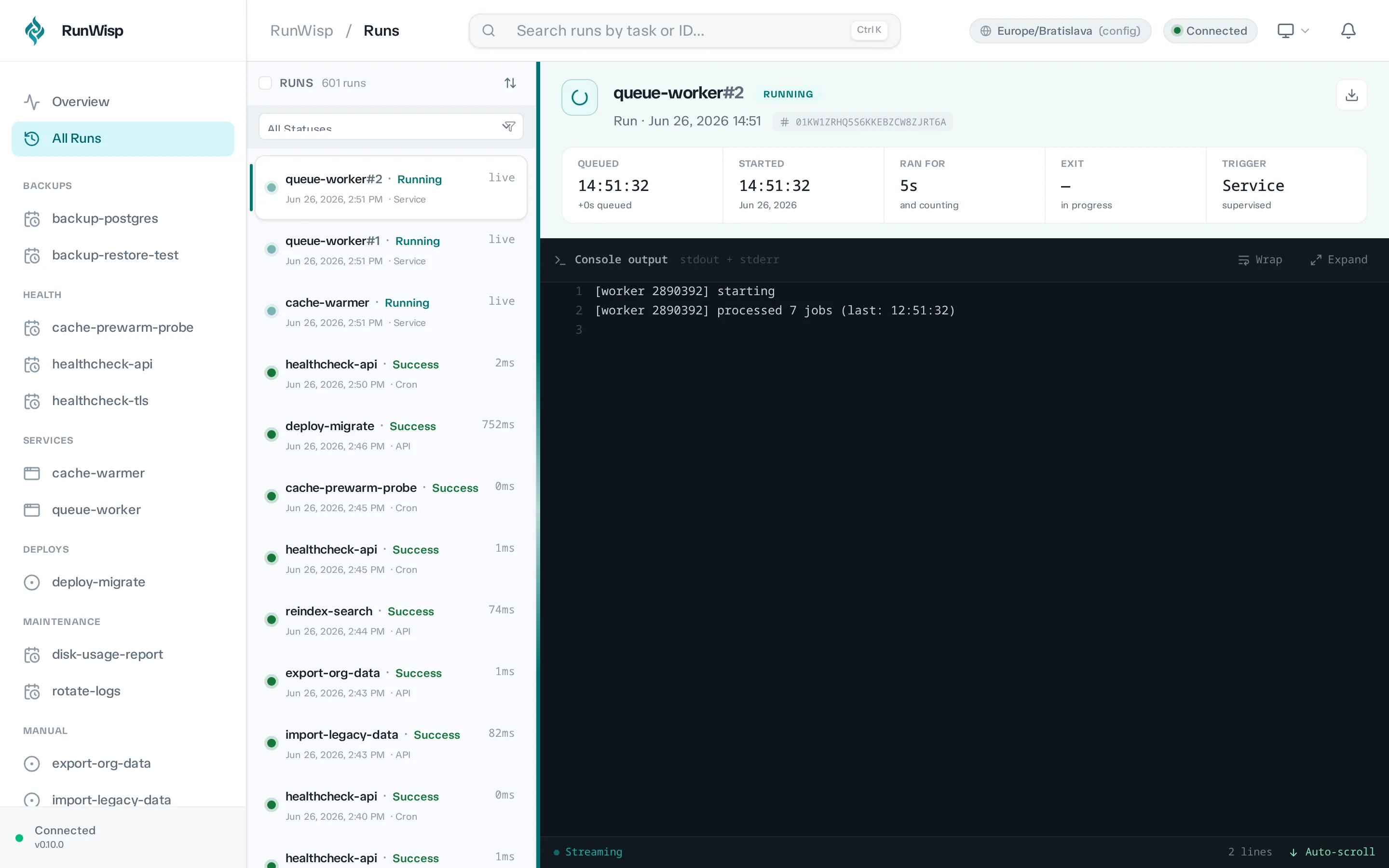

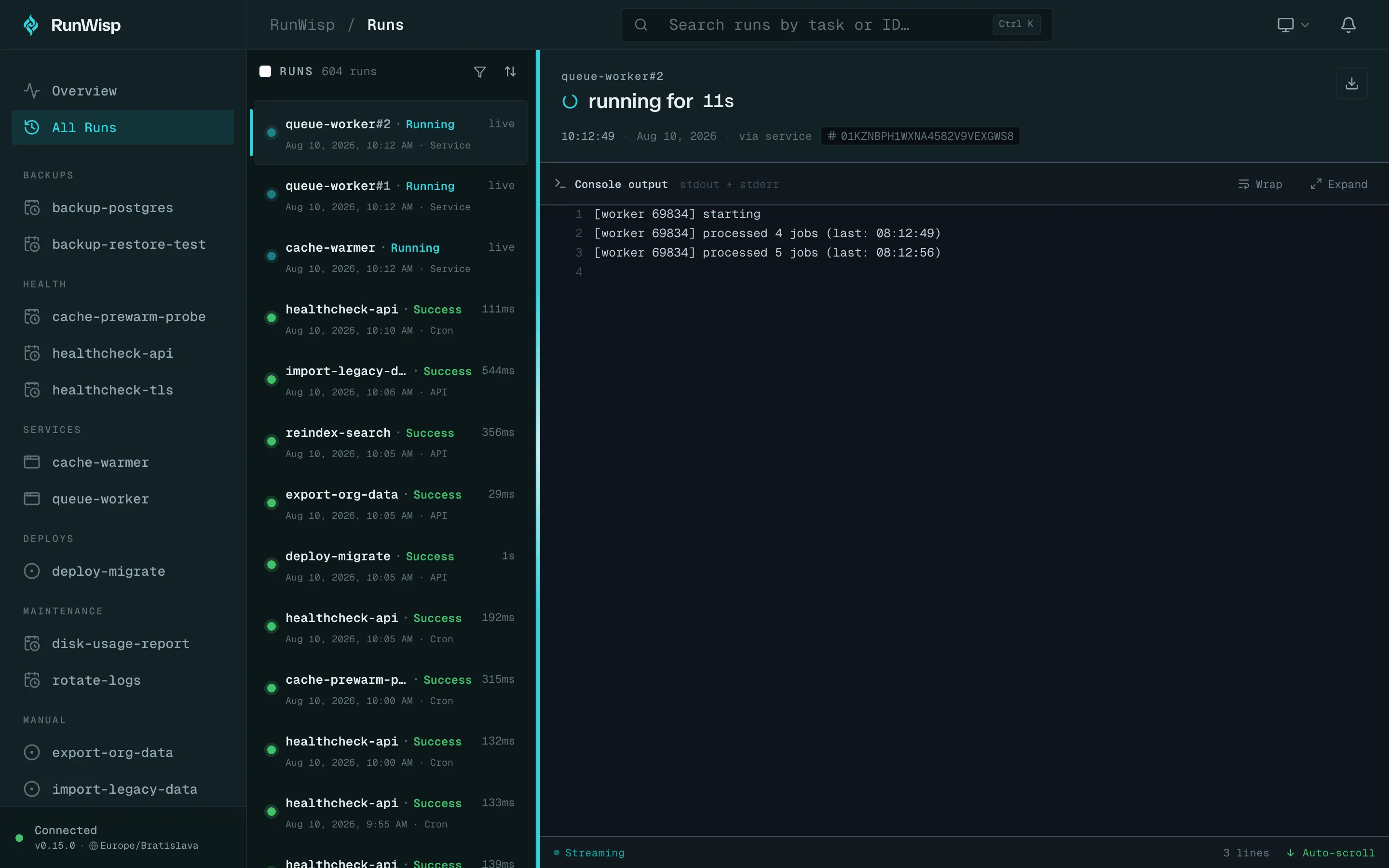

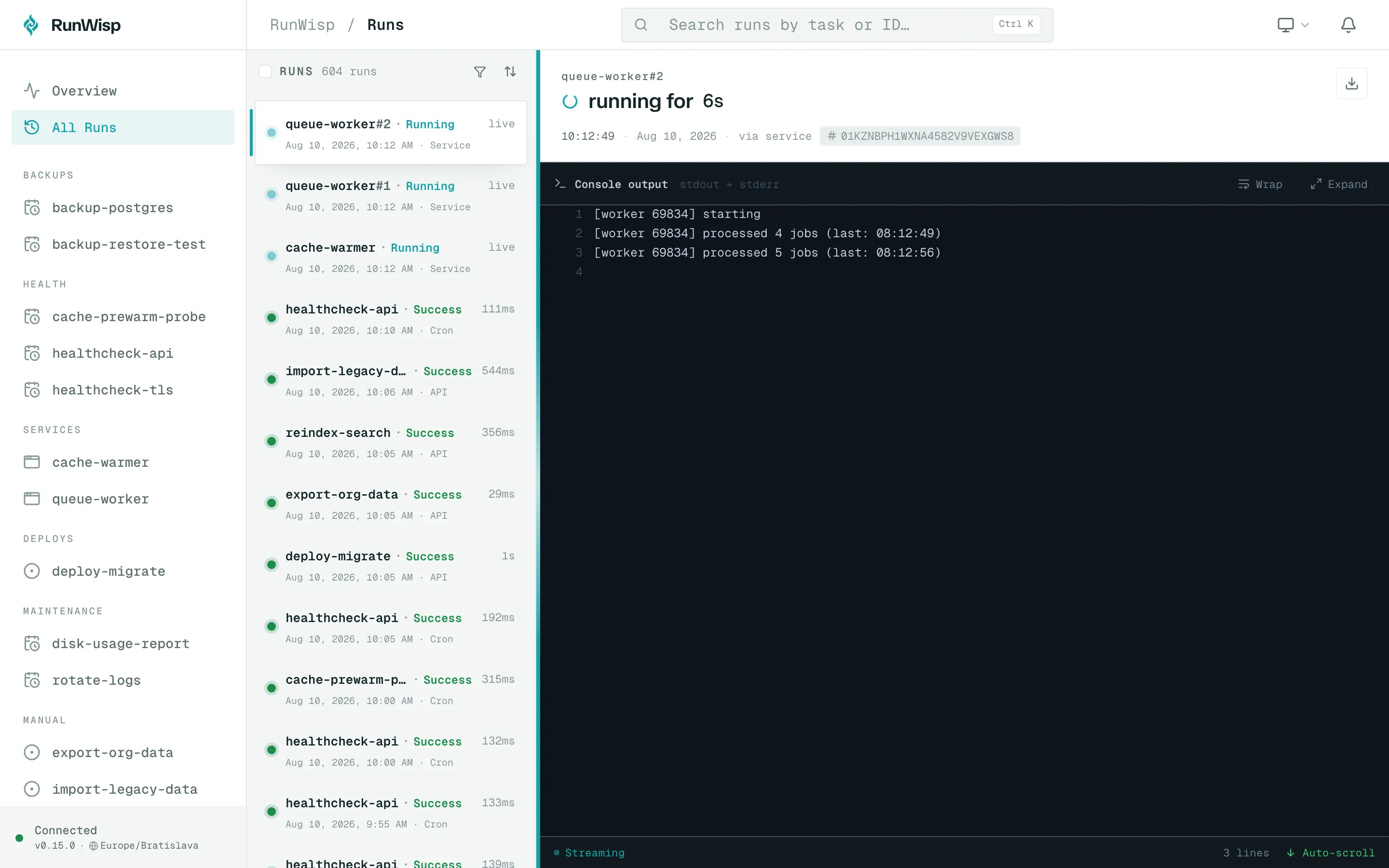

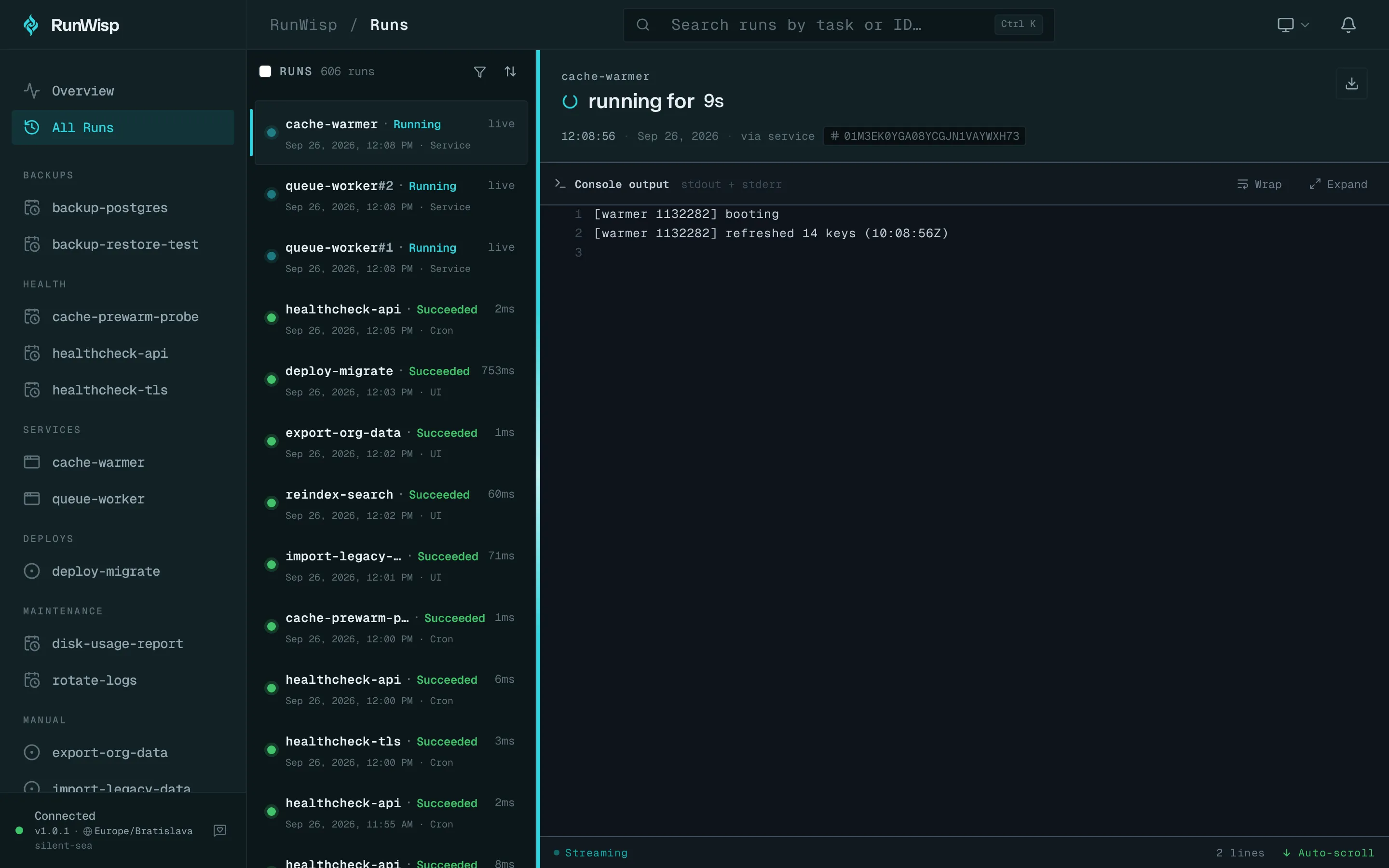

All runs (/runs)

A flat history of the 200 most recent runs across every task, sorted newest-first. Useful for “what’s been happening” — or if a notification points you at a run id and you want to find it without clicking into a specific task.

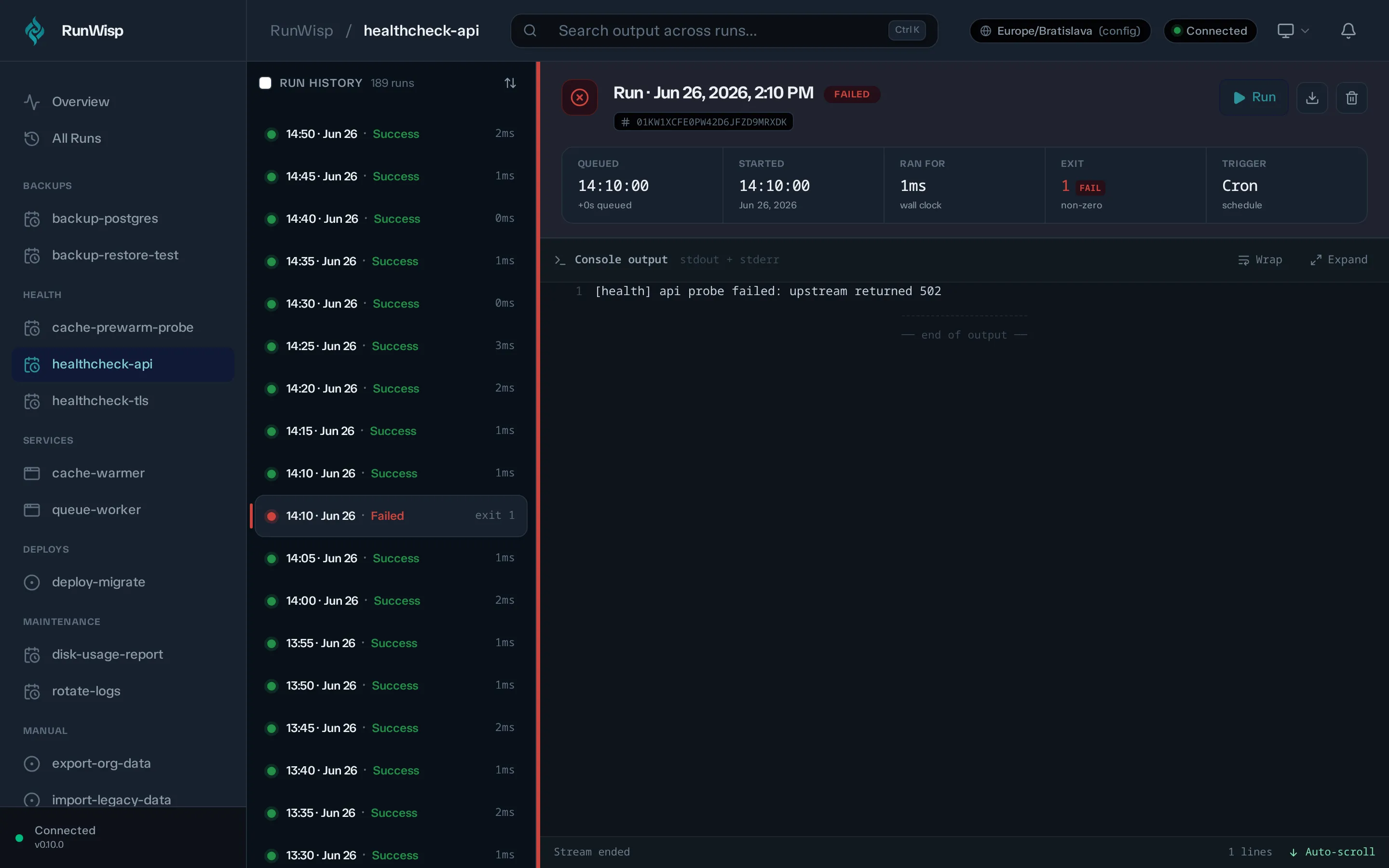

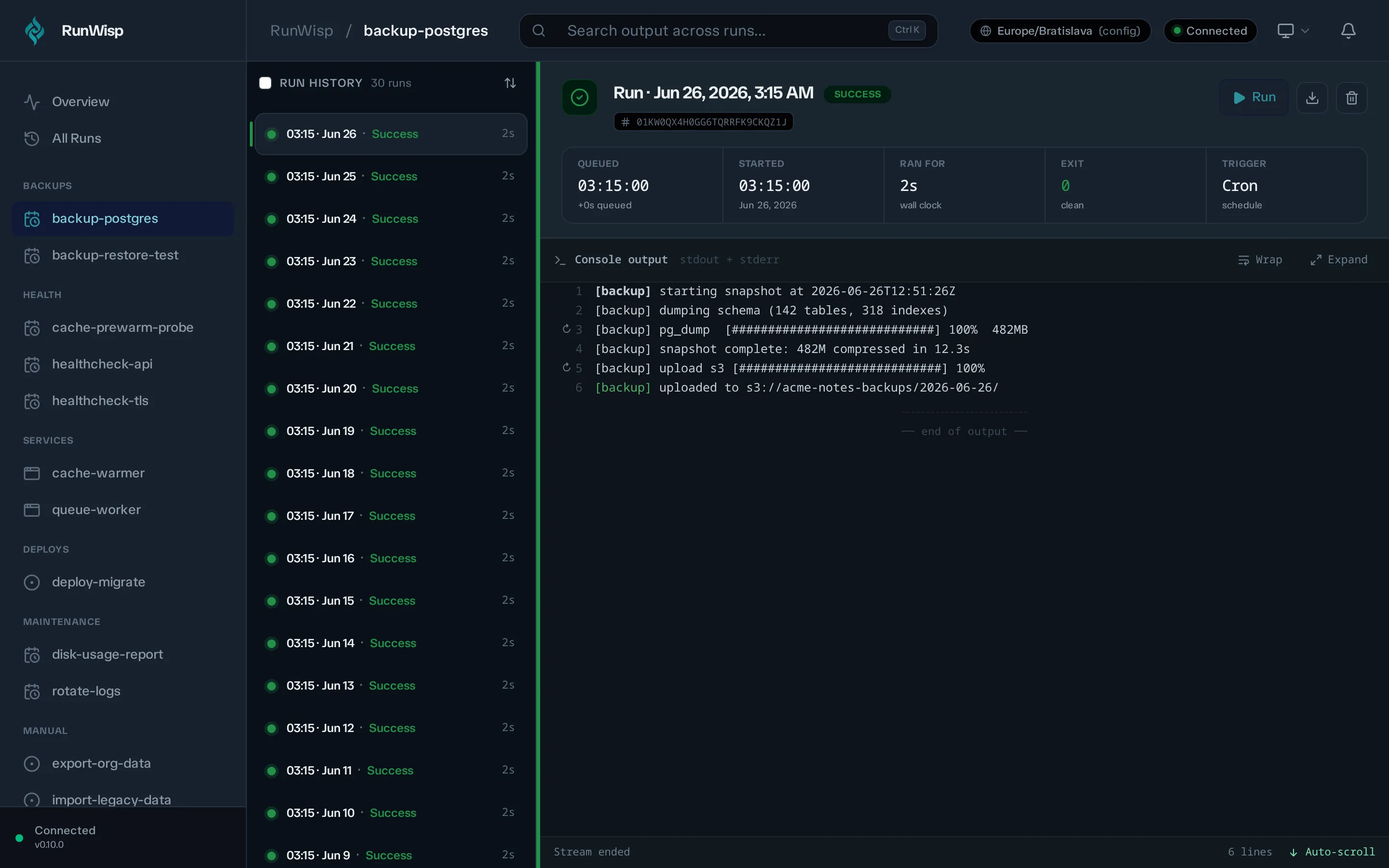

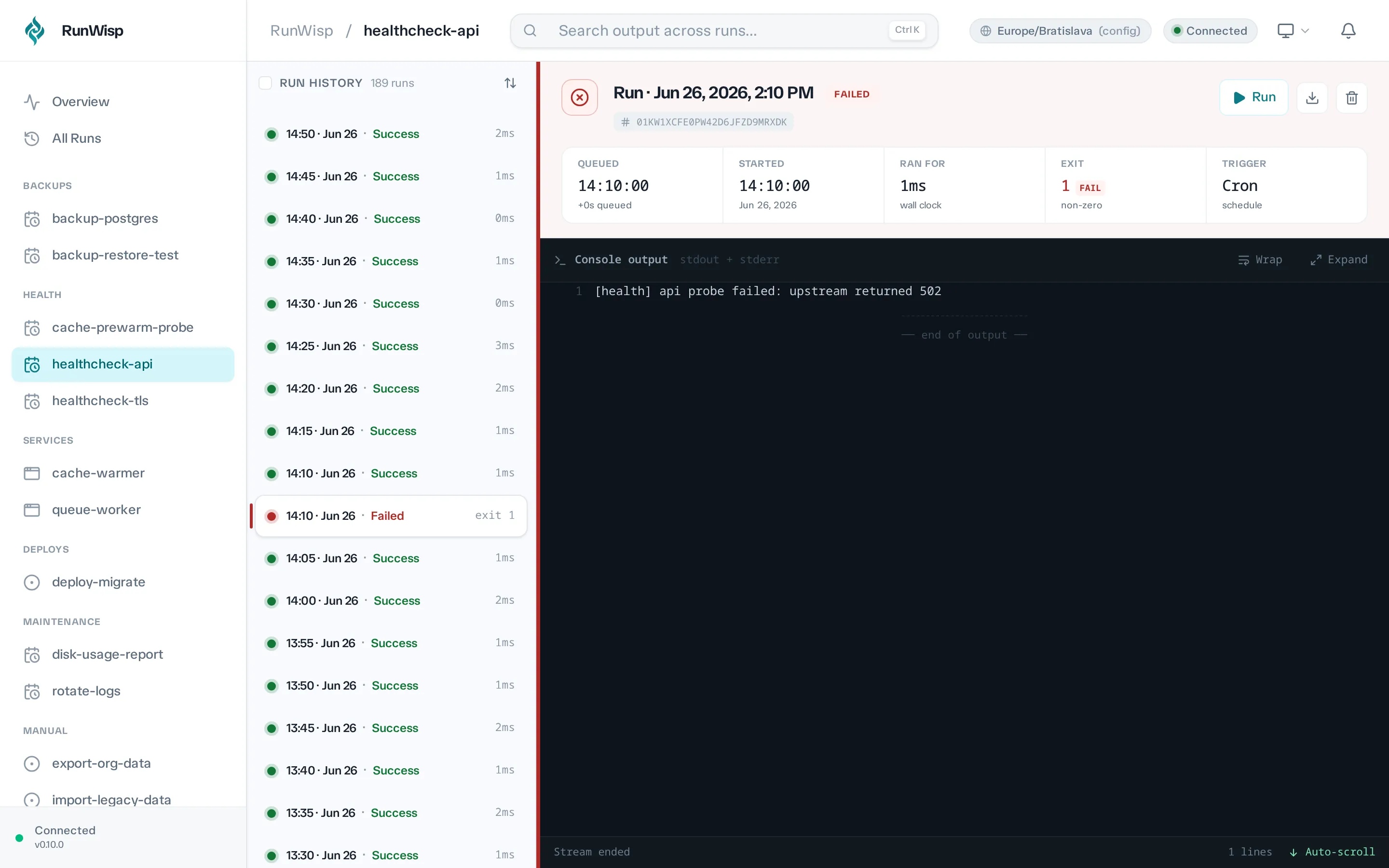

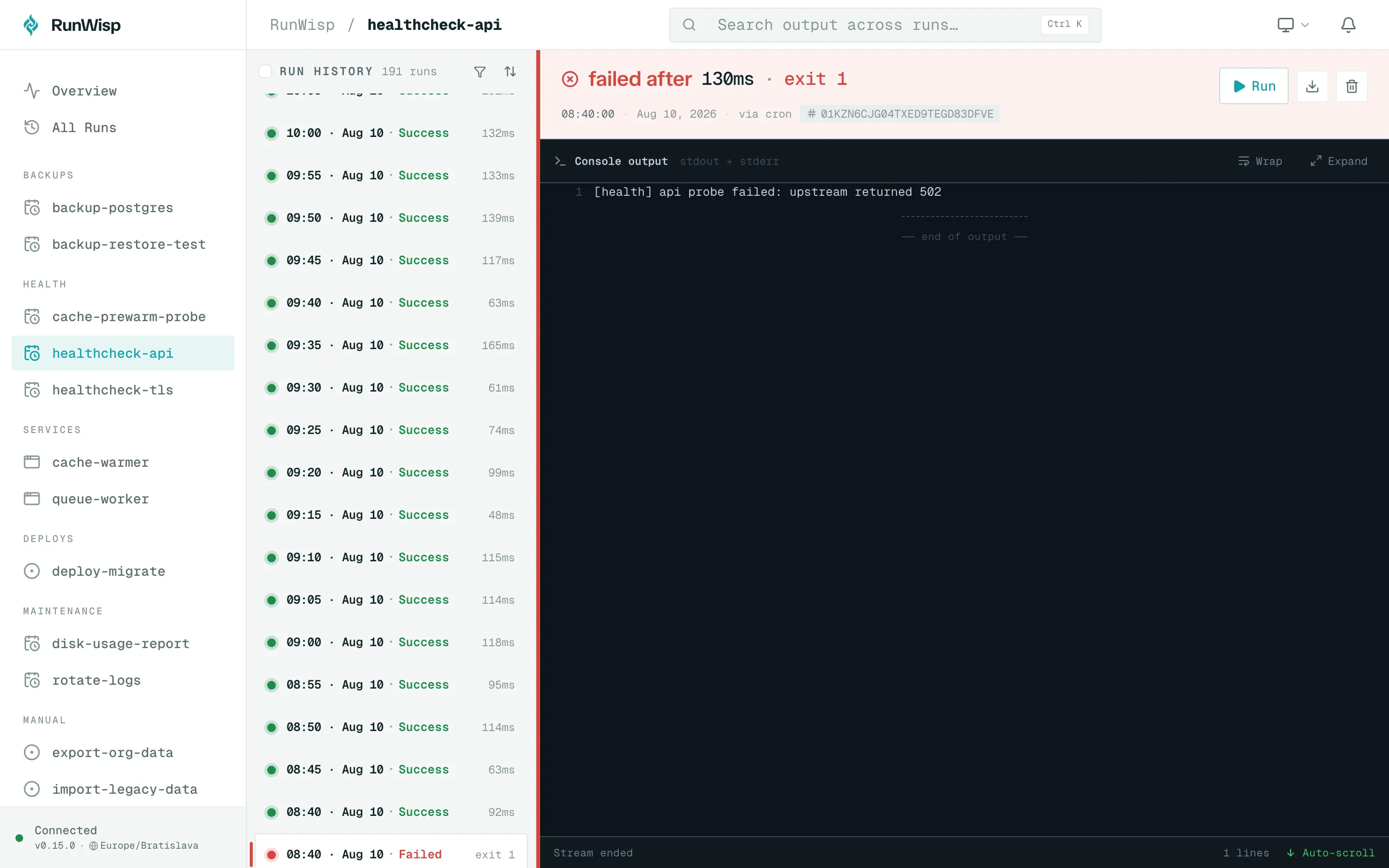

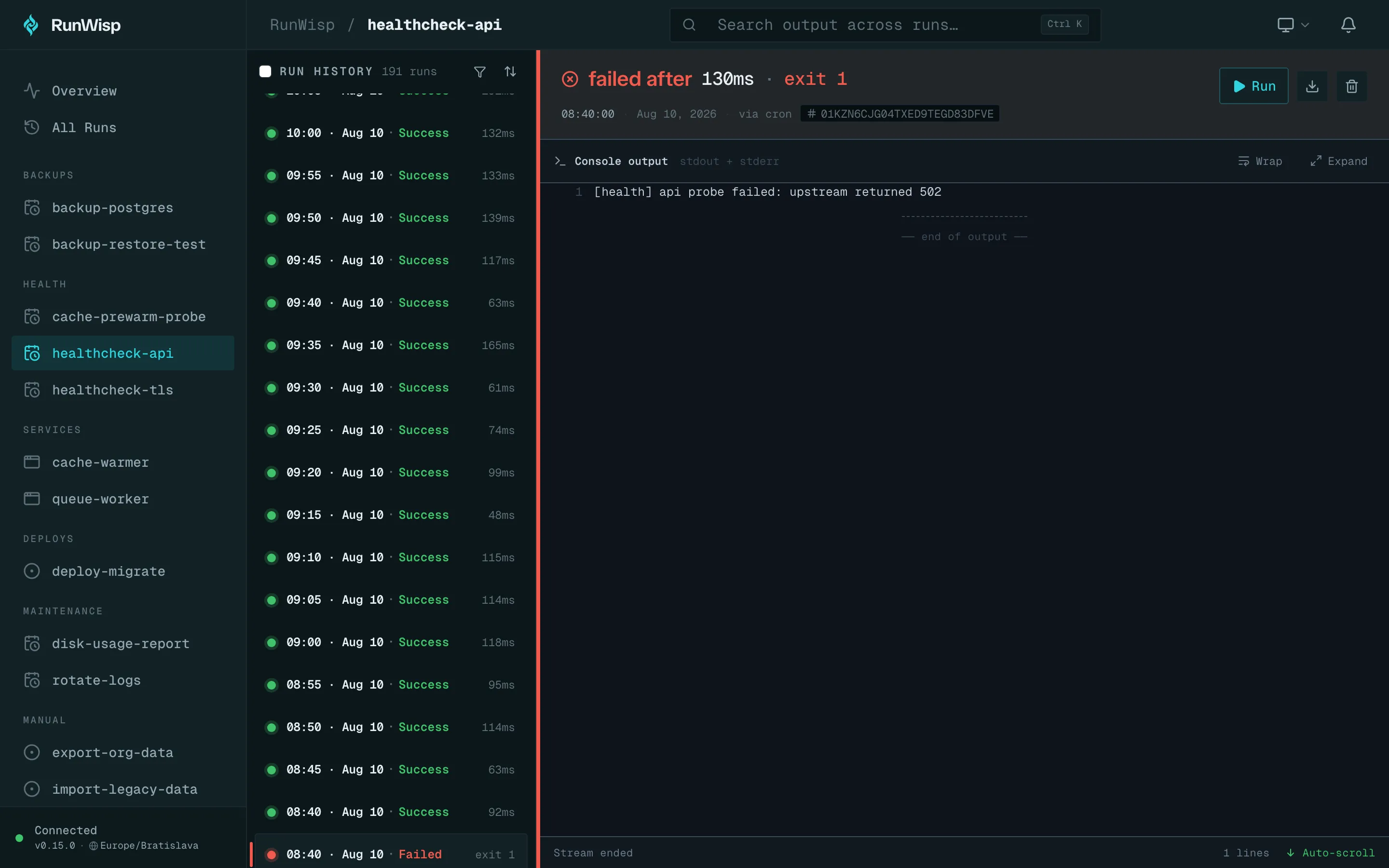

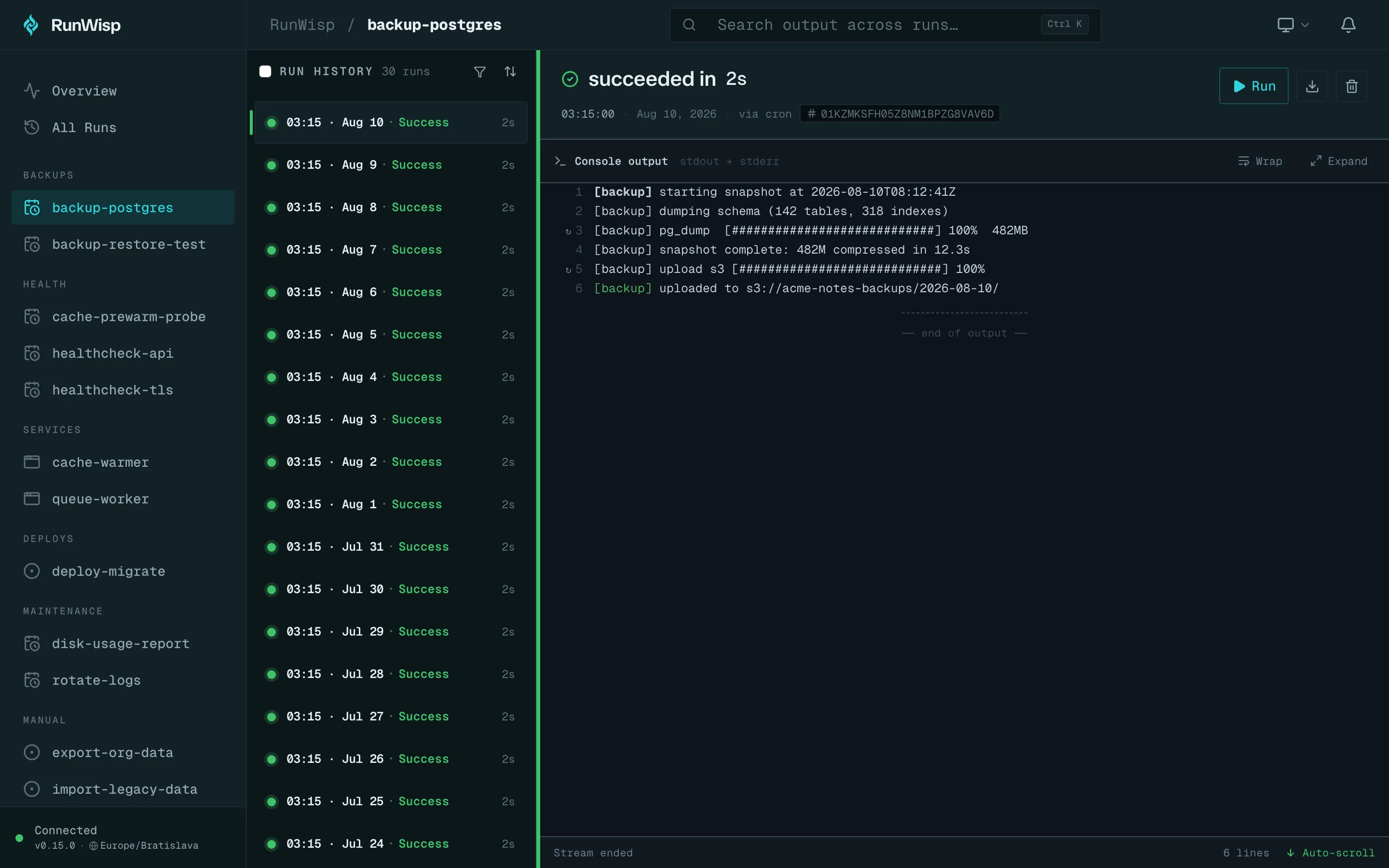

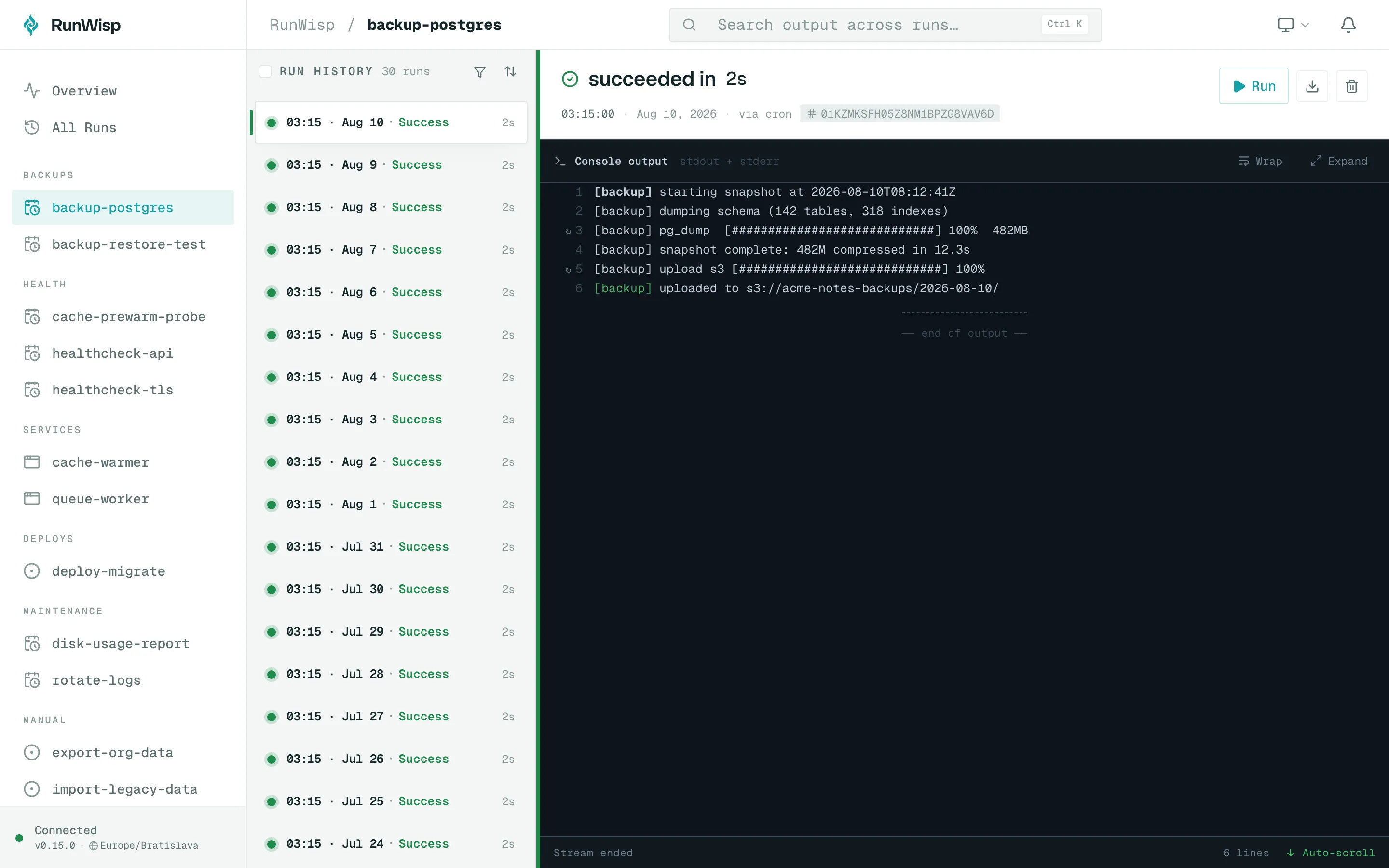

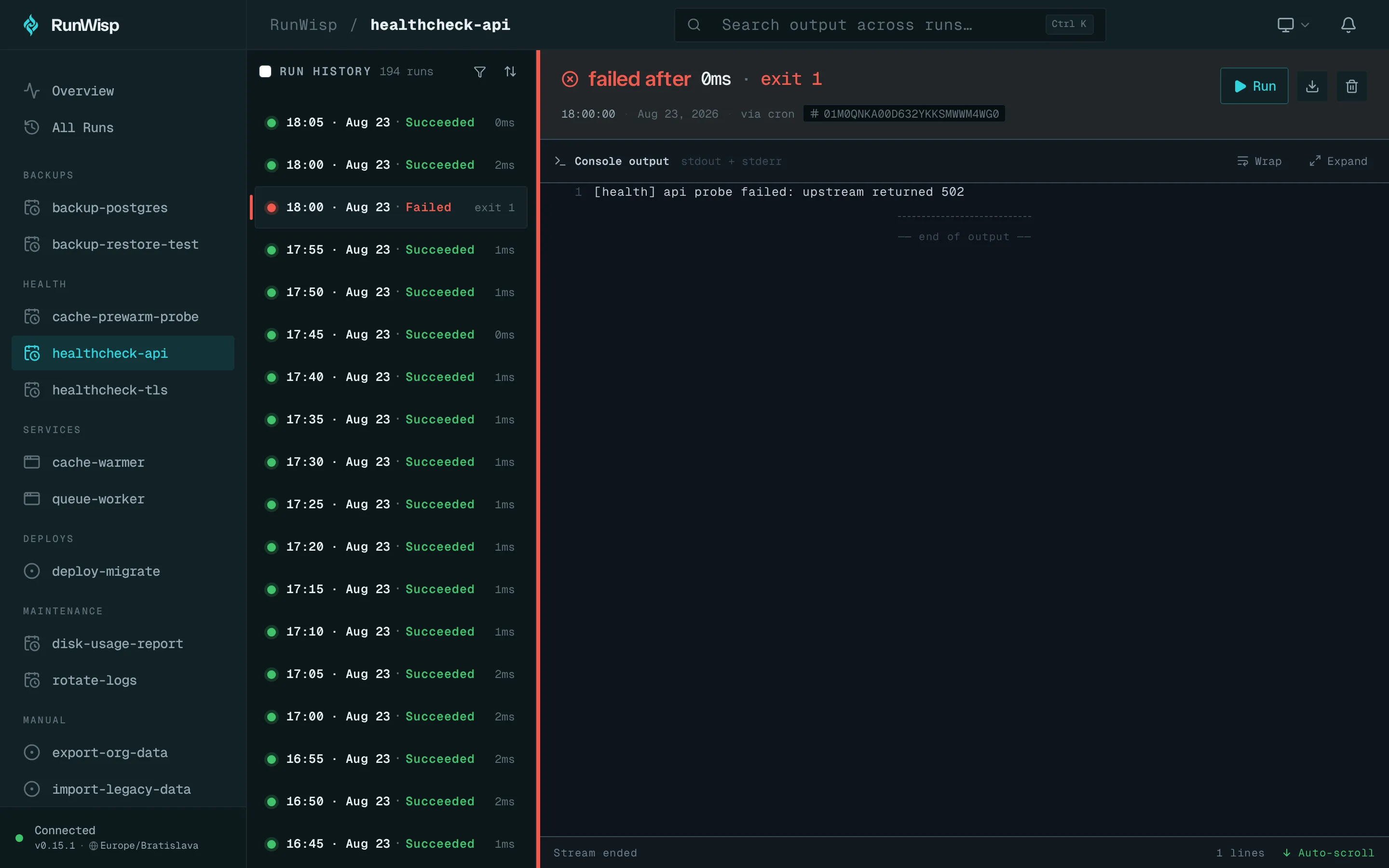

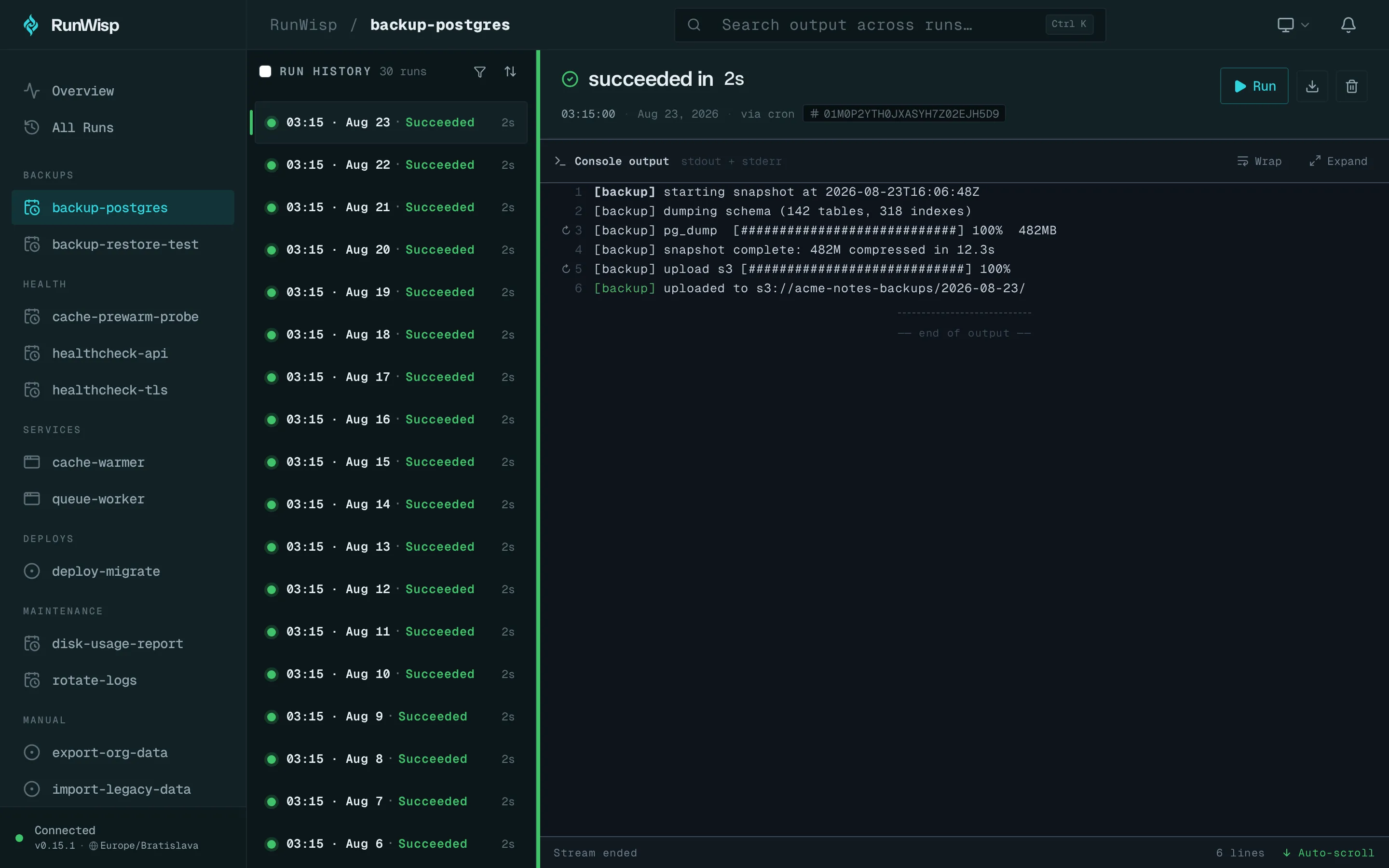

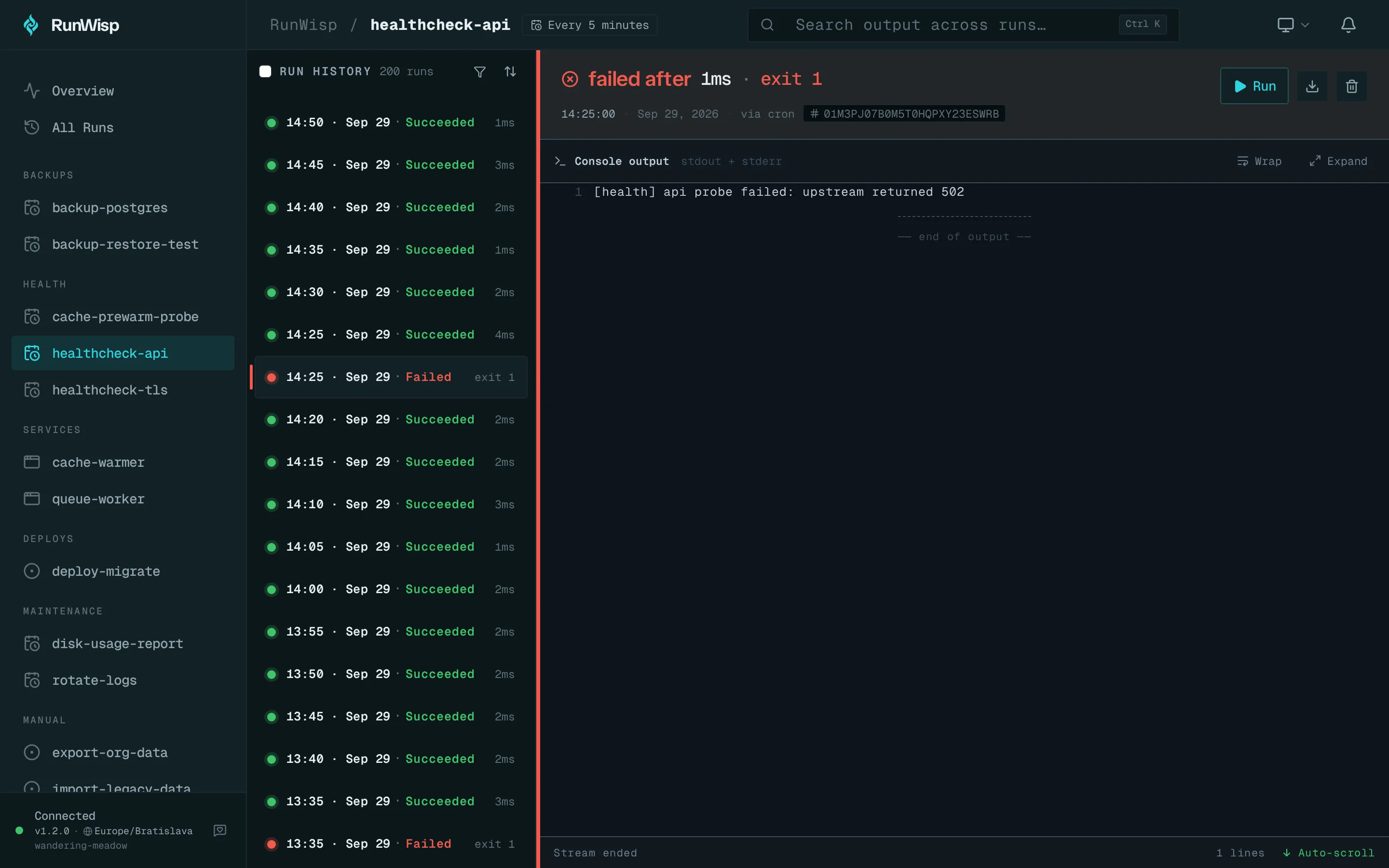

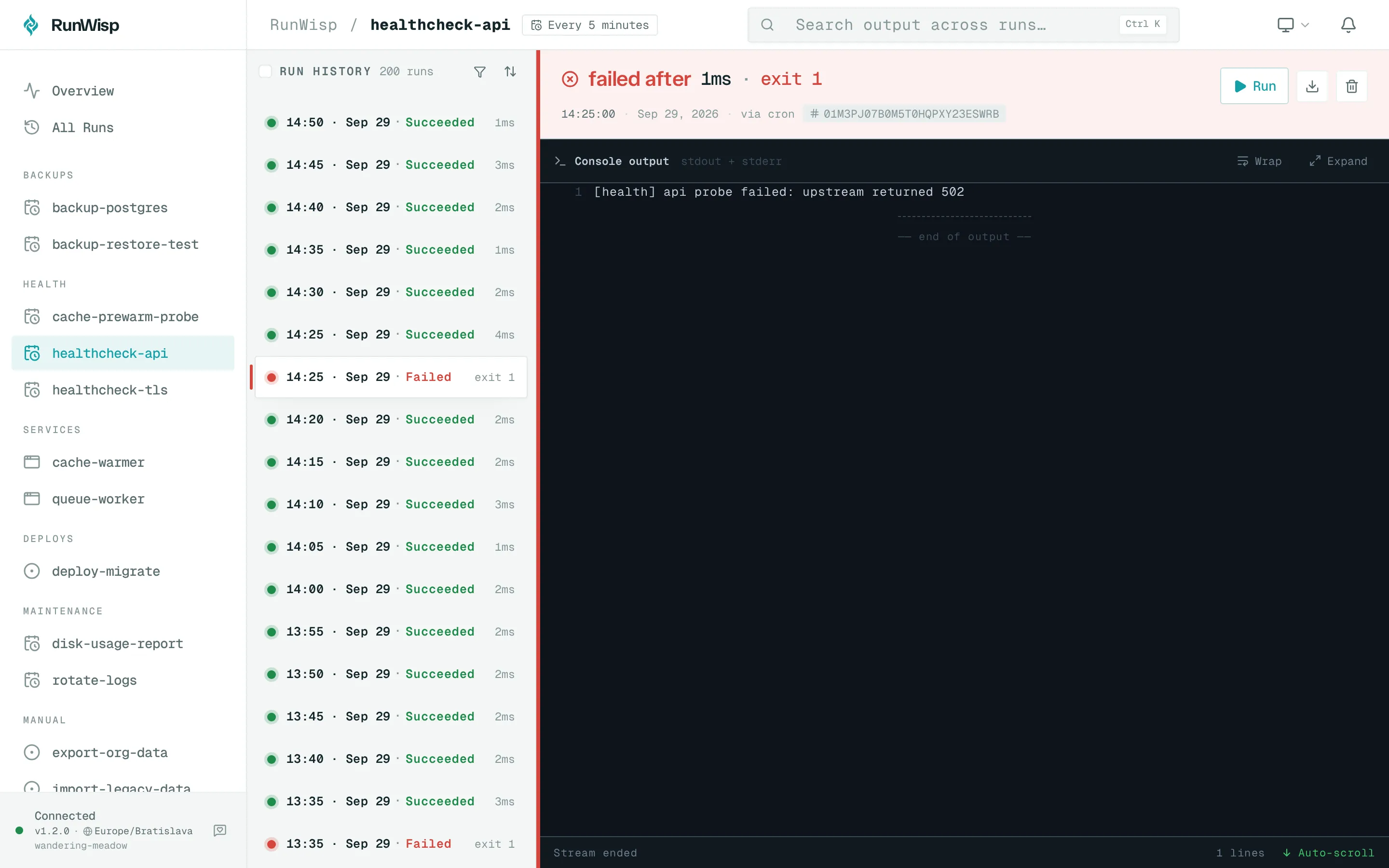

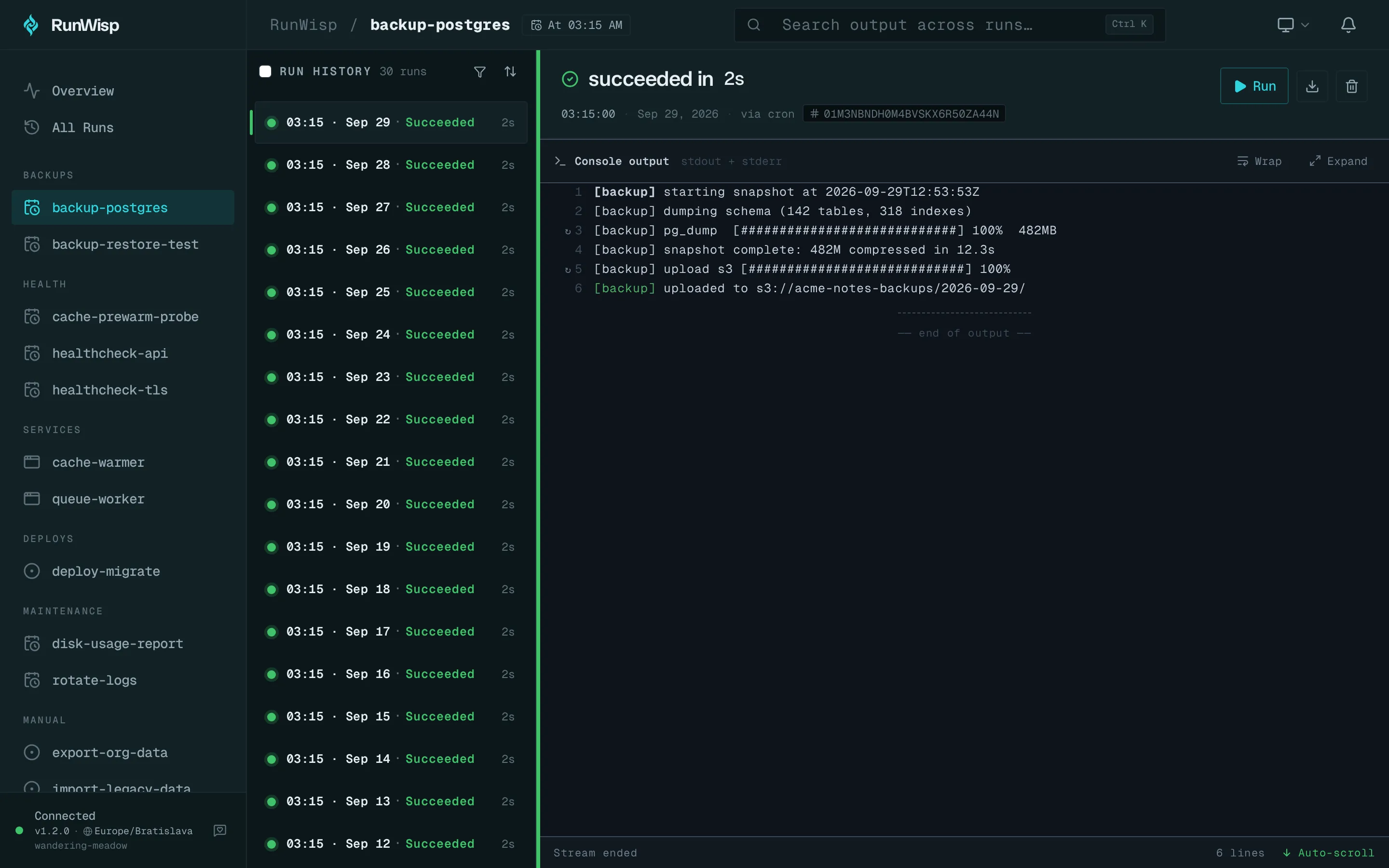

Task detail (/tasks/{name})

Click a task in the sidebar (or any run in the activity feed) to land here.

• Header — task name, description, schedule line.
• Action button — Run Now for tasks, Restart for services, Stop while a run is in flight. Run Now greys out when the task is at its parallelism limit.
• Run history — the 50 most recent runs for this task, selectable.
• Log viewer — the streaming log for the selected run, occupying most of the pane.

For a service, the detail also surfaces replica count and the Restart button cancels every replica — the supervisor refills the slots via its normal exit-handler path.

The log viewer

When you open a finished run, the log viewer lands at the tail in a single round-trip and lazy-loads older content as you scroll up. For an in-flight run it streams new lines live over SSE.

• Line numbers are absolute — they match what the underlying log file records.
• ANSI colour codes from the task’s stdout/stderr are rendered faithfully.
• A line longer than 64 KB is split, with the continuation marked.
• The viewer handles log rotation transparently — when a run with log_on_full = "drop_old" rotates its file, you just see a small “log rotated” marker and continuous line numbering.

There is no “download” button. The on-disk file lives at data/logs/<task>/{timestamp}_{run-id-suffix}.log — copy it from disk if you need a local archive. The REST API exposes GET /api/tasks/{name}/runs/{id}/log/raw for the same content as text/plain.

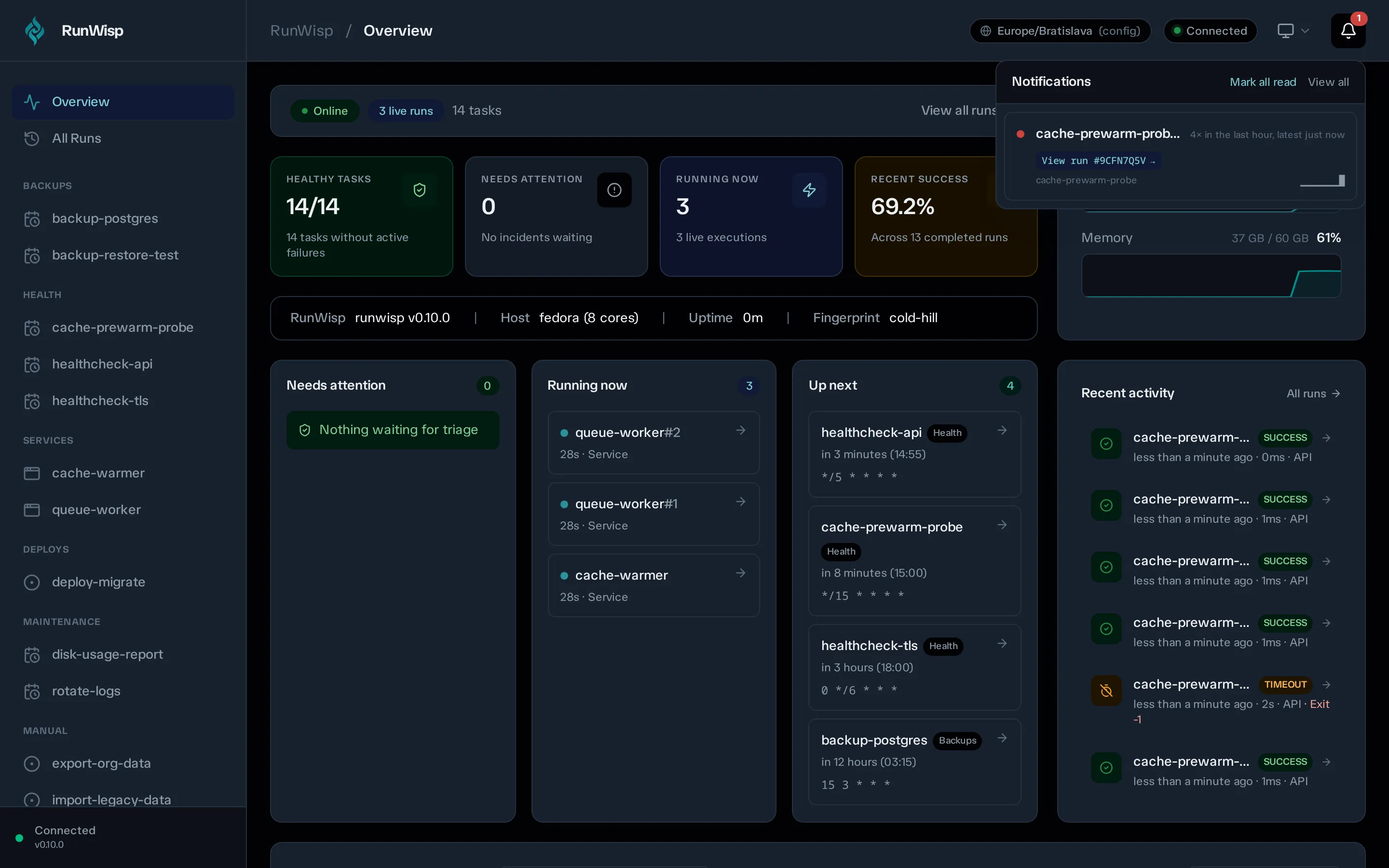

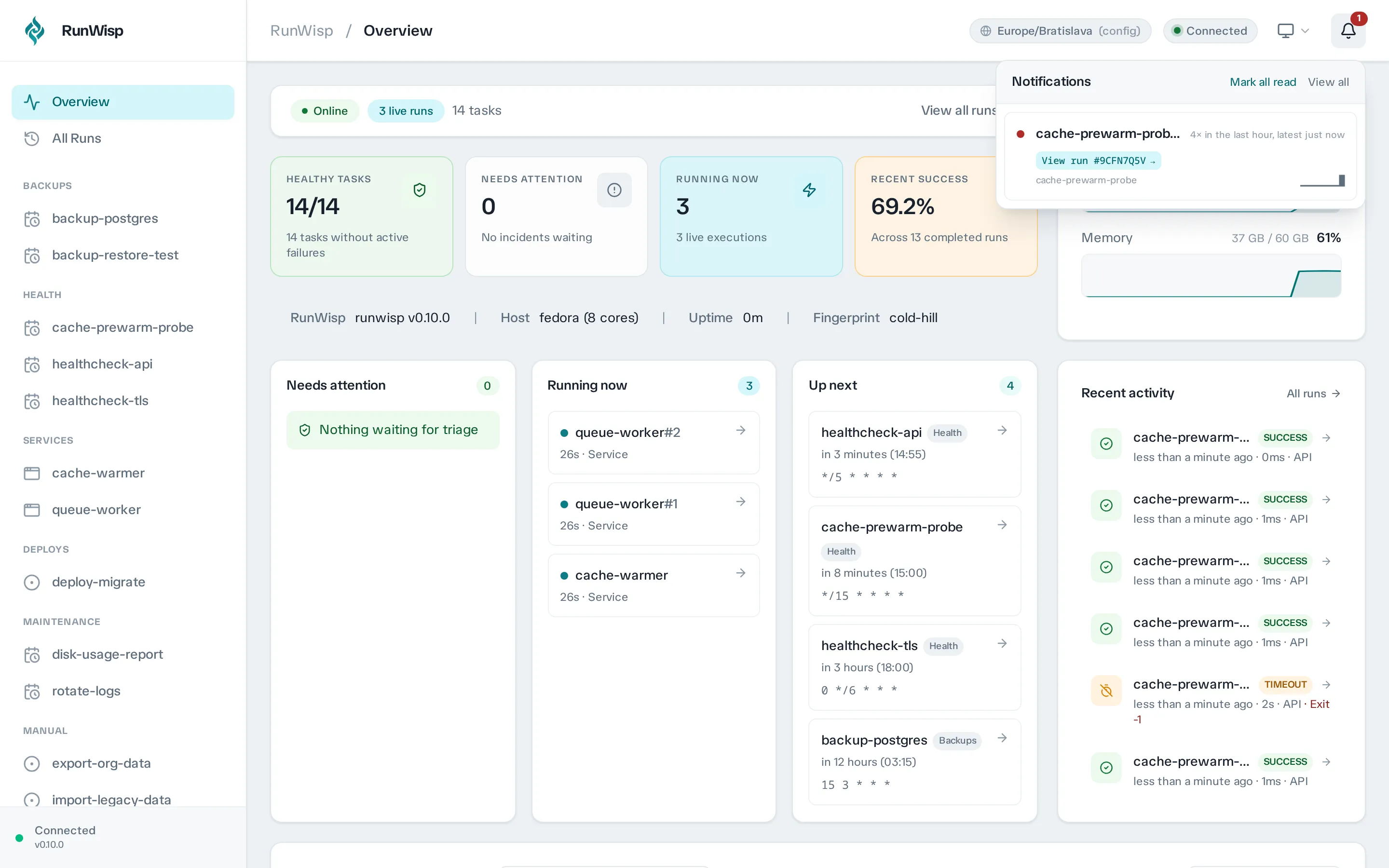

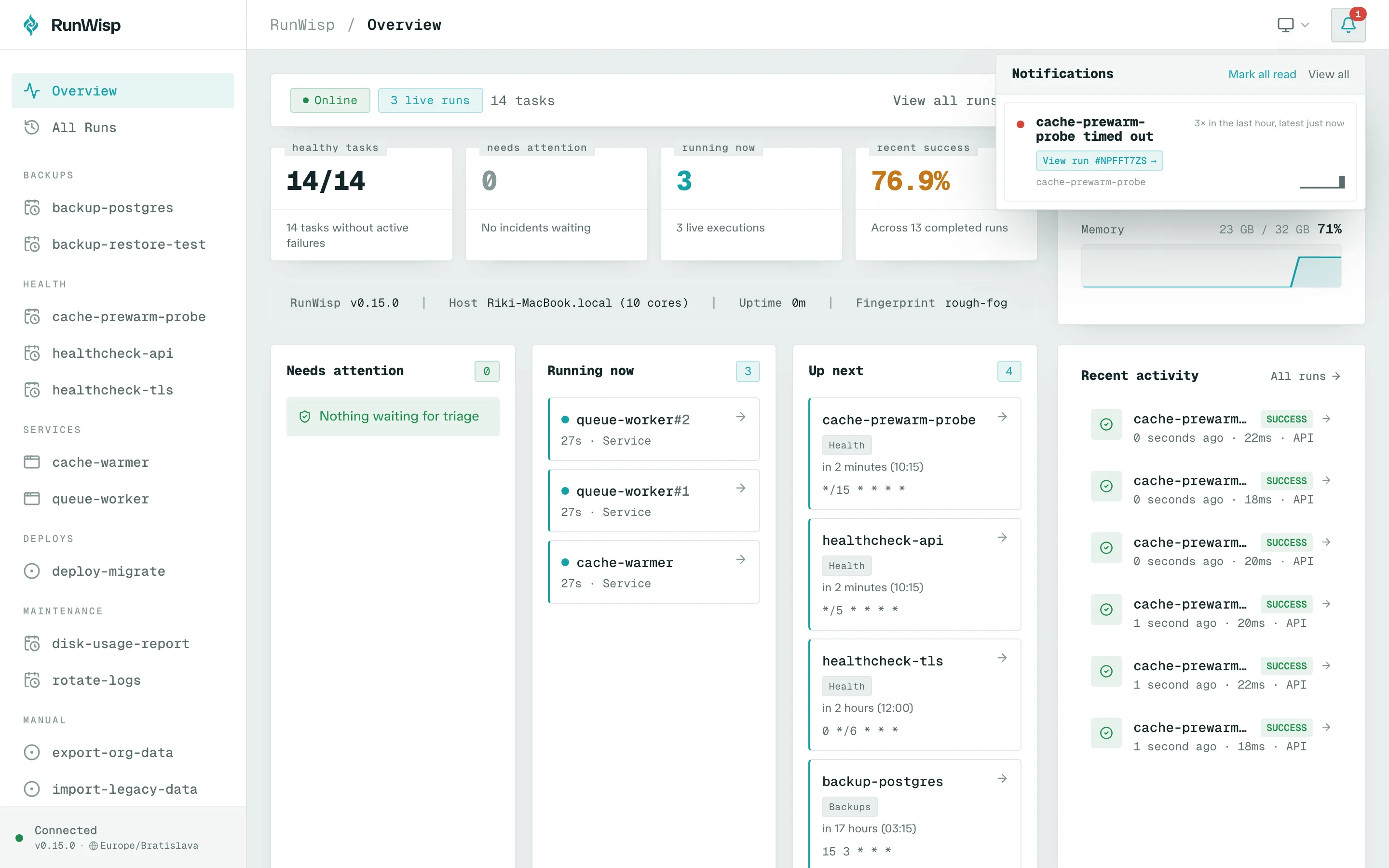

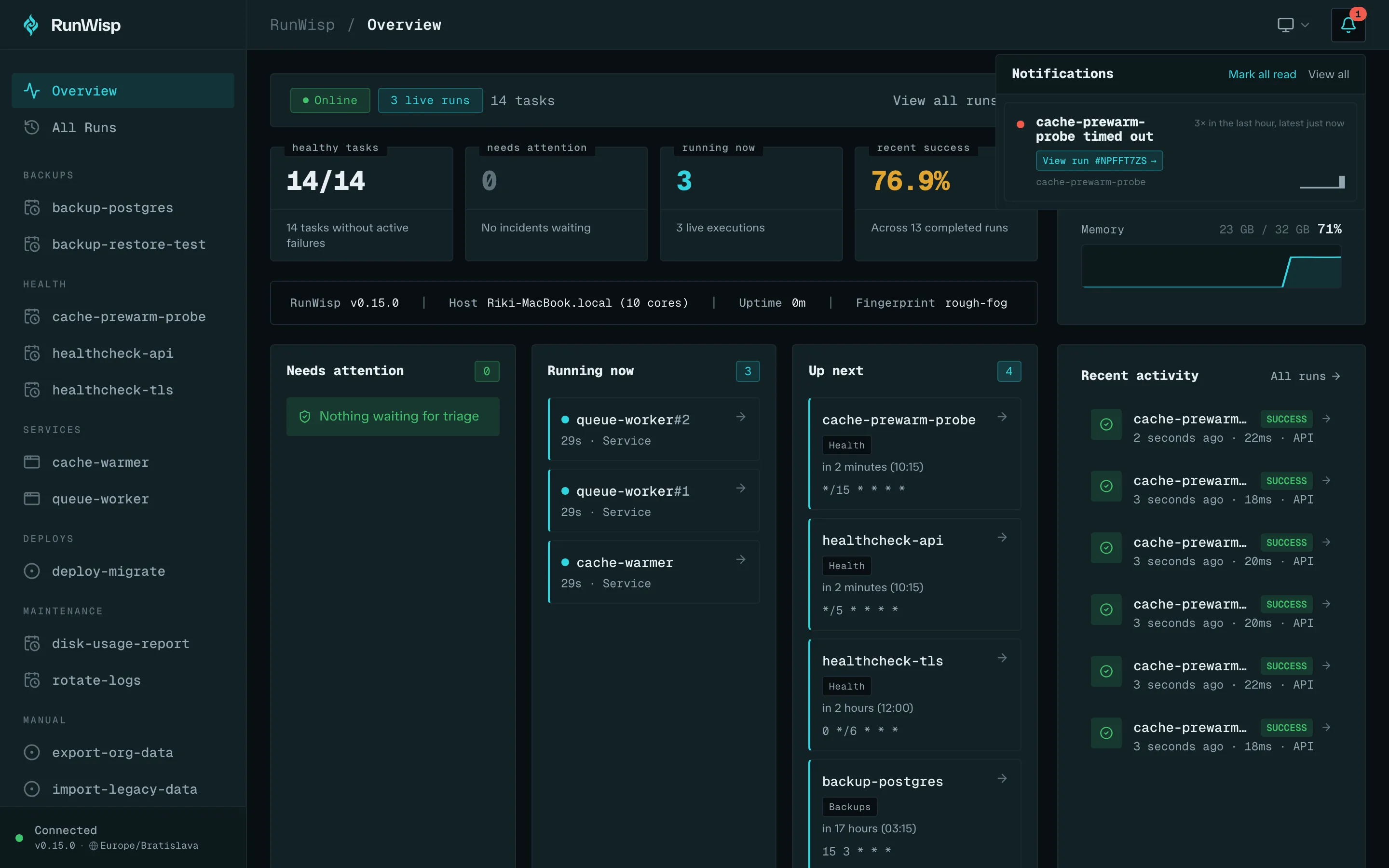

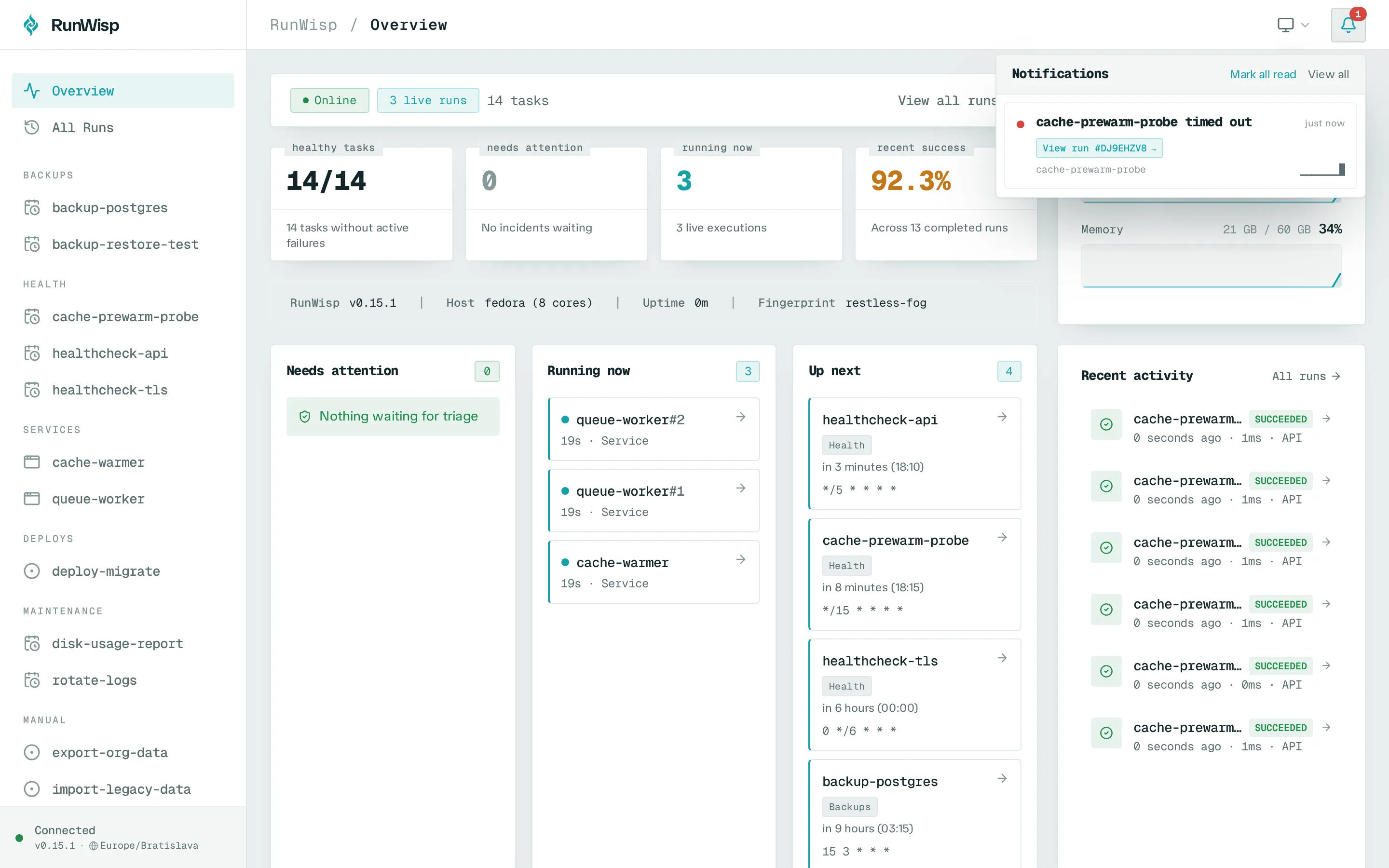

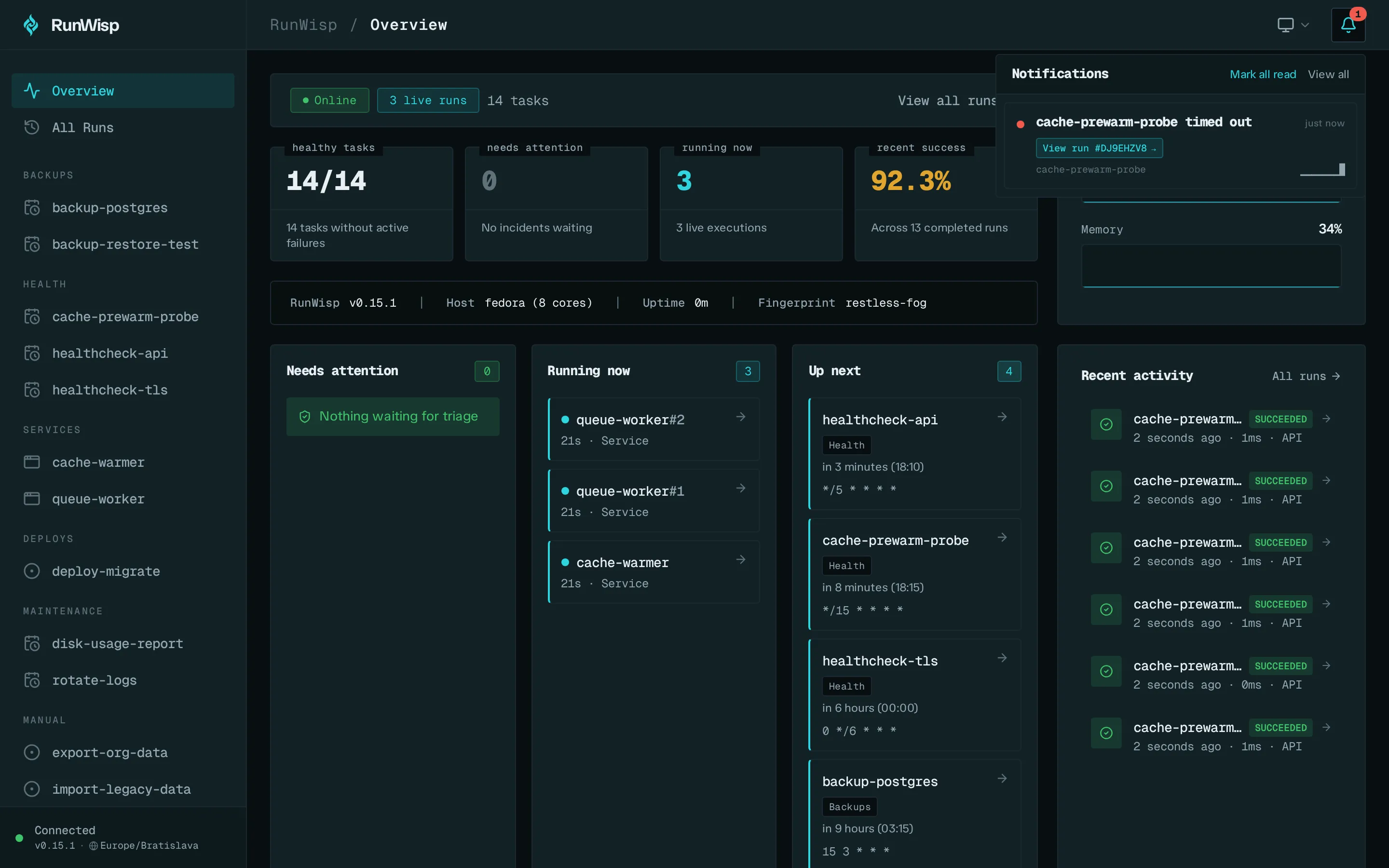

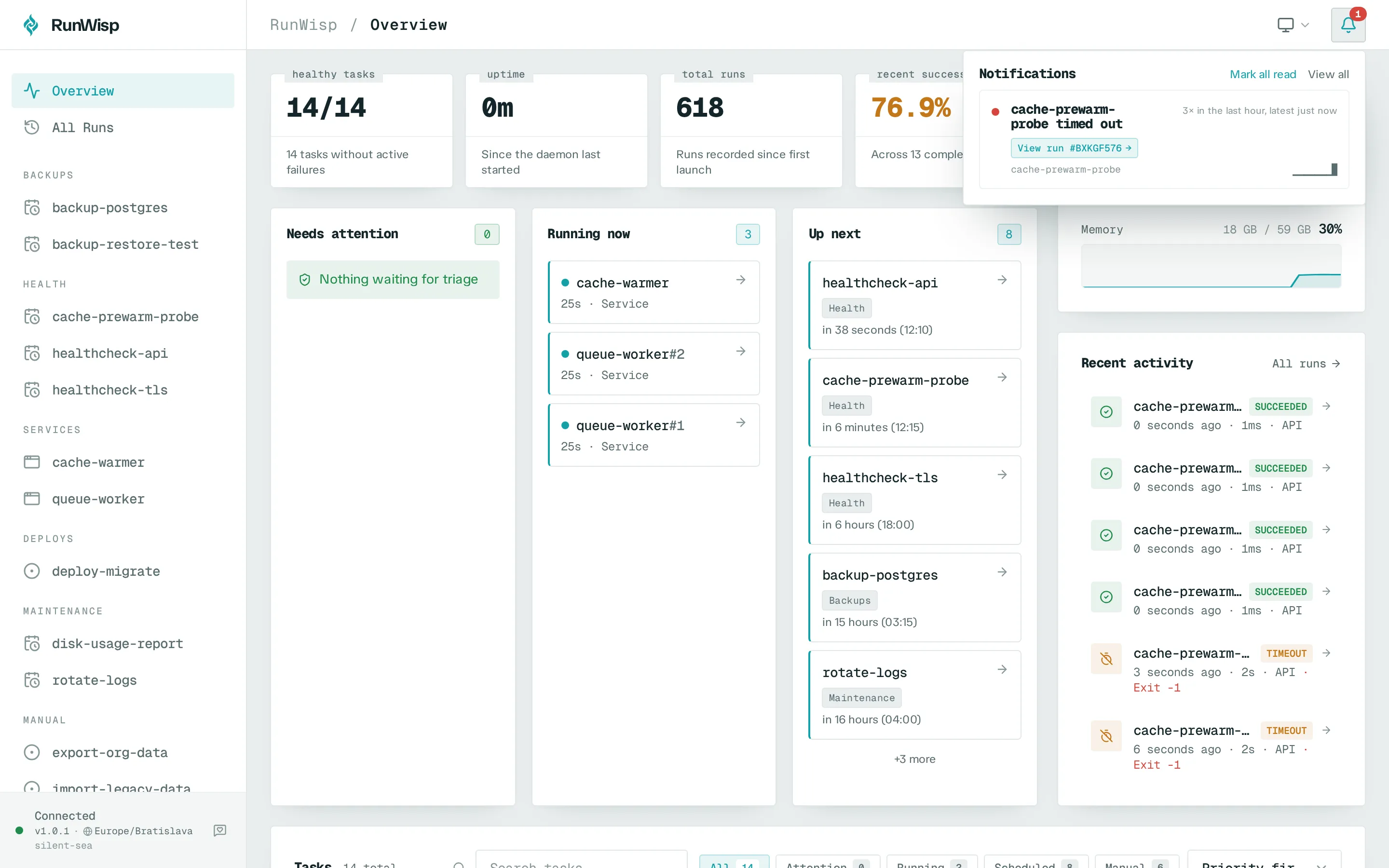

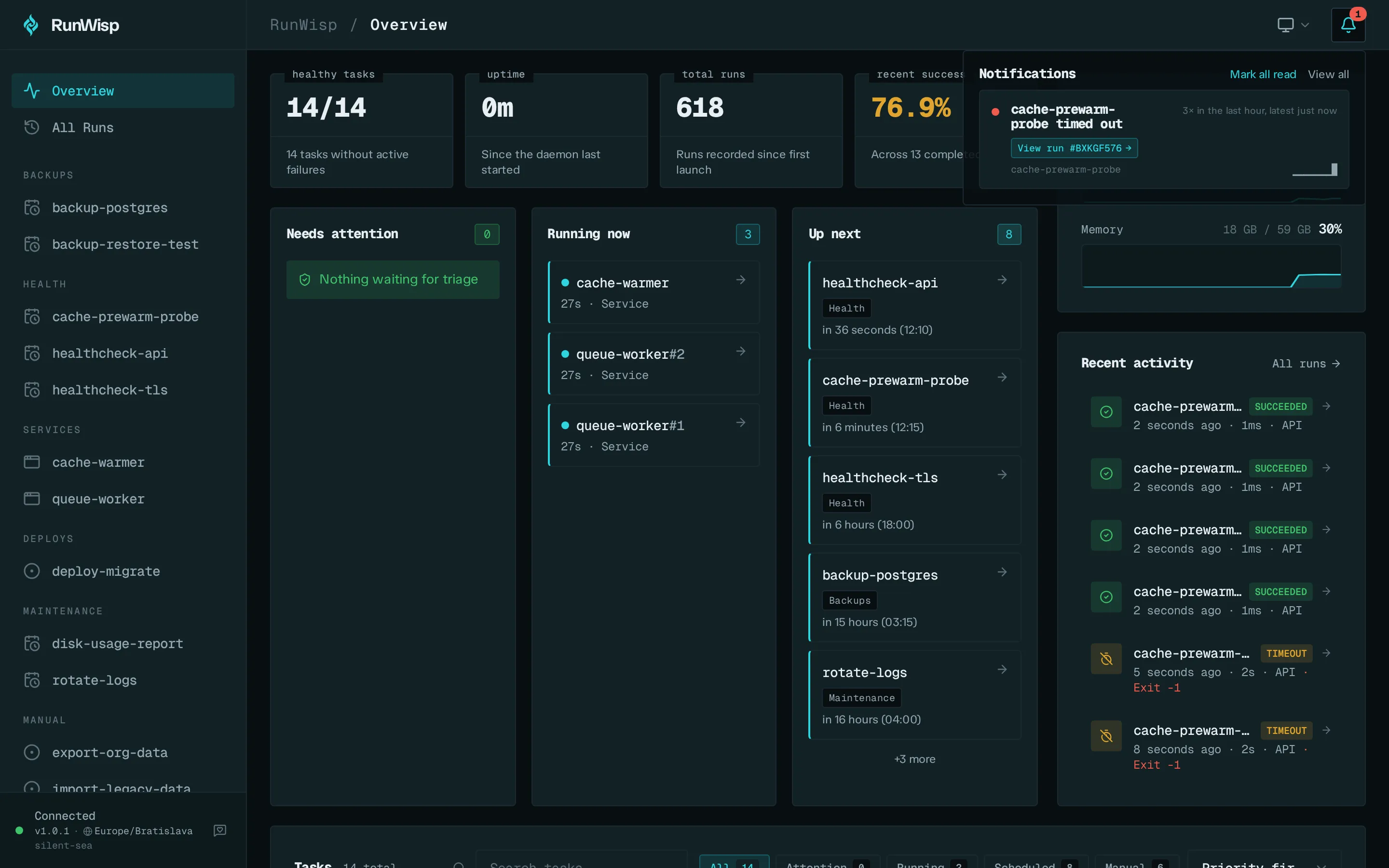

Notifications bell

Top-right of the header. The badge shows your unread count, coloured red if any of the unread events are errors, teal otherwise.

Click the bell to open the popover — the ten most recent notifications, with read-state toggles, a “View all” link, and a “Mark all read” button.

Each row carries:

• A coloured dot for severity (red error, orange warn, teal info).
• The event headline.
• Relative time (5 seconds ago).
• The task name.
• A small sparkline of recent occurrences when the row is coalesced.

Coalescing is what the notifications model does so a flapping task doesn’t fill your bell with duplicates: events sharing a dedup key (task + kind + end reason) collapse into a single row with a count and a rhythm summary (“failed 12 times, latest 30s ago”). The sparkline reads at a glance.

Click a notification to land on the run it’s about.

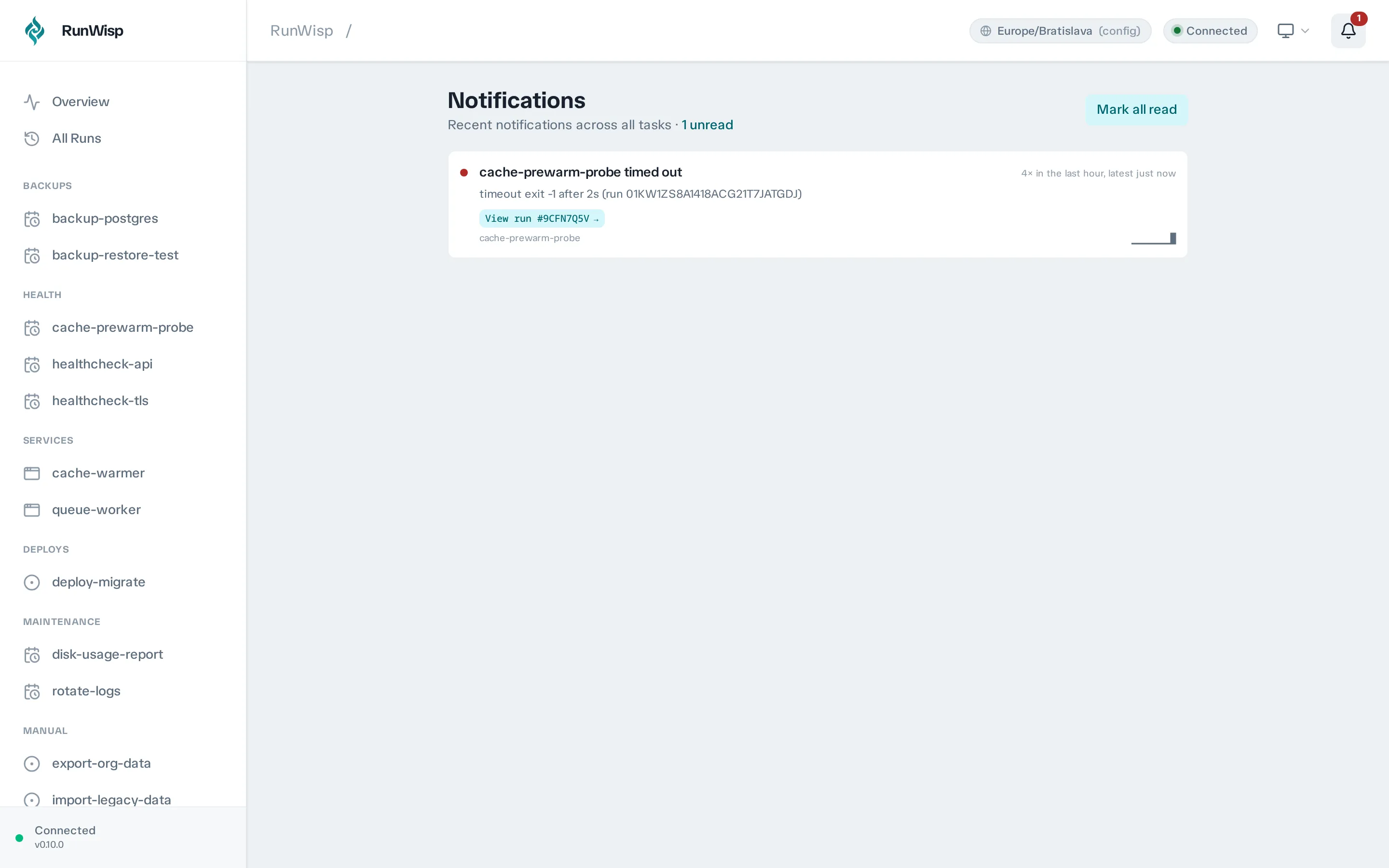

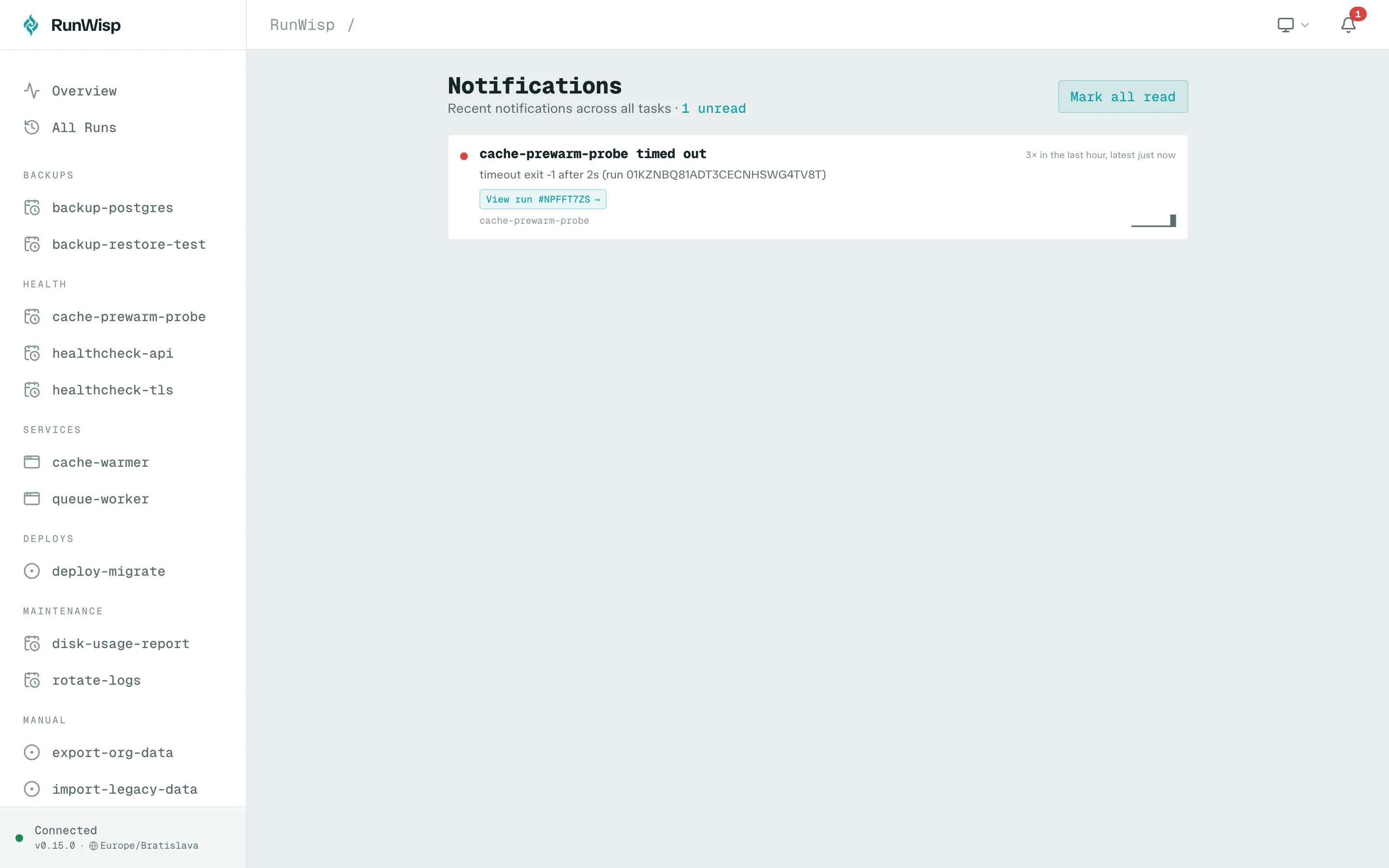

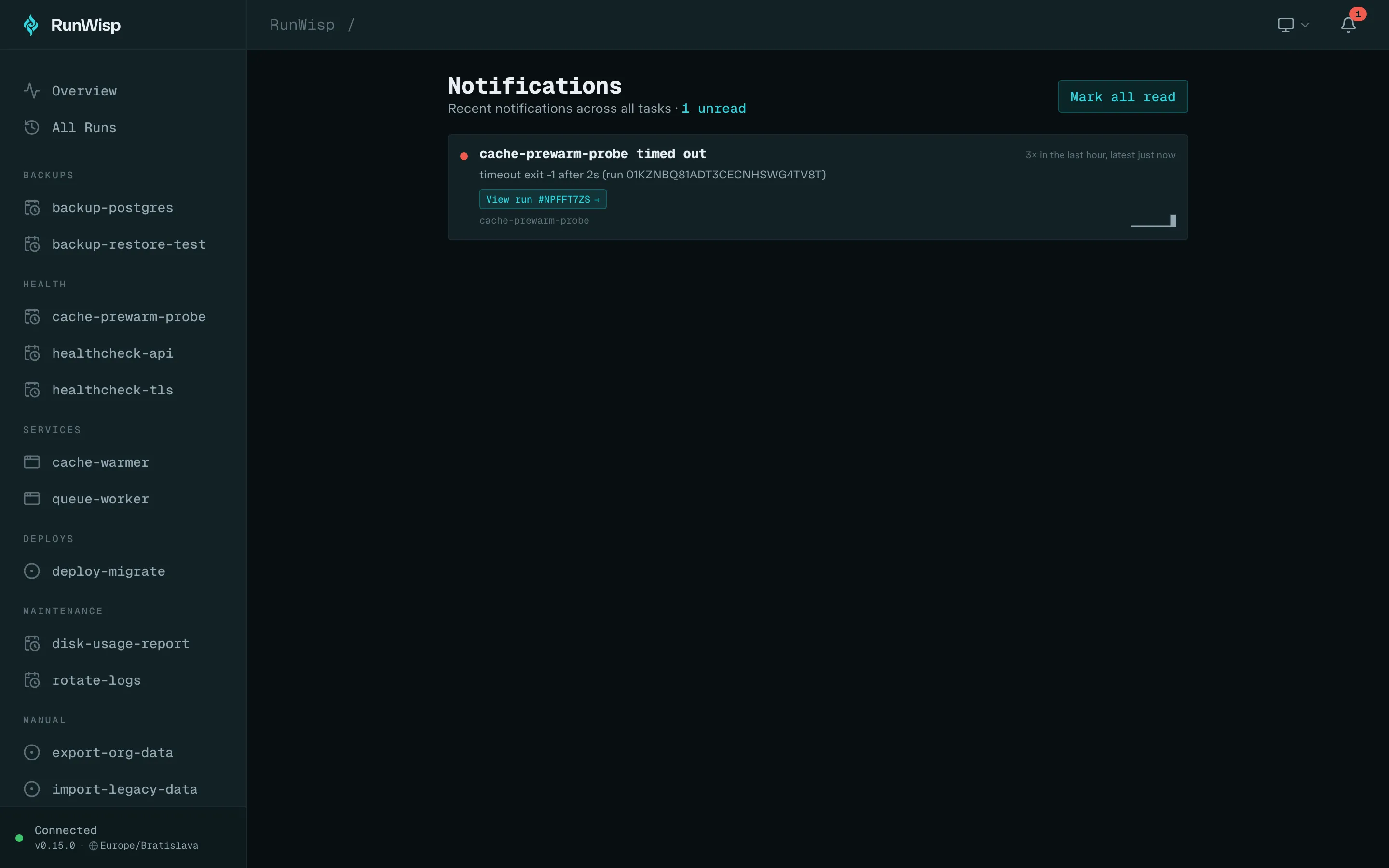

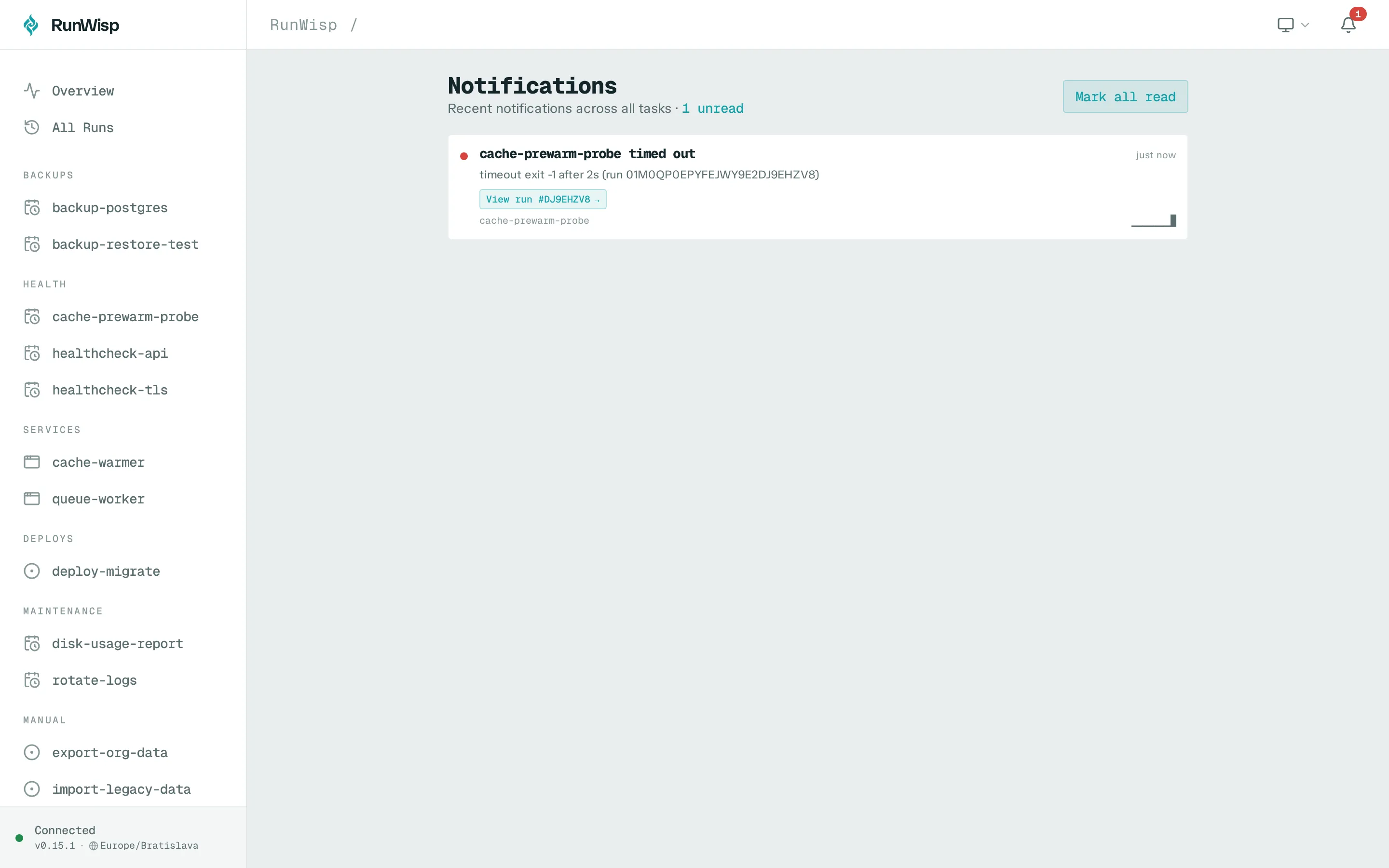

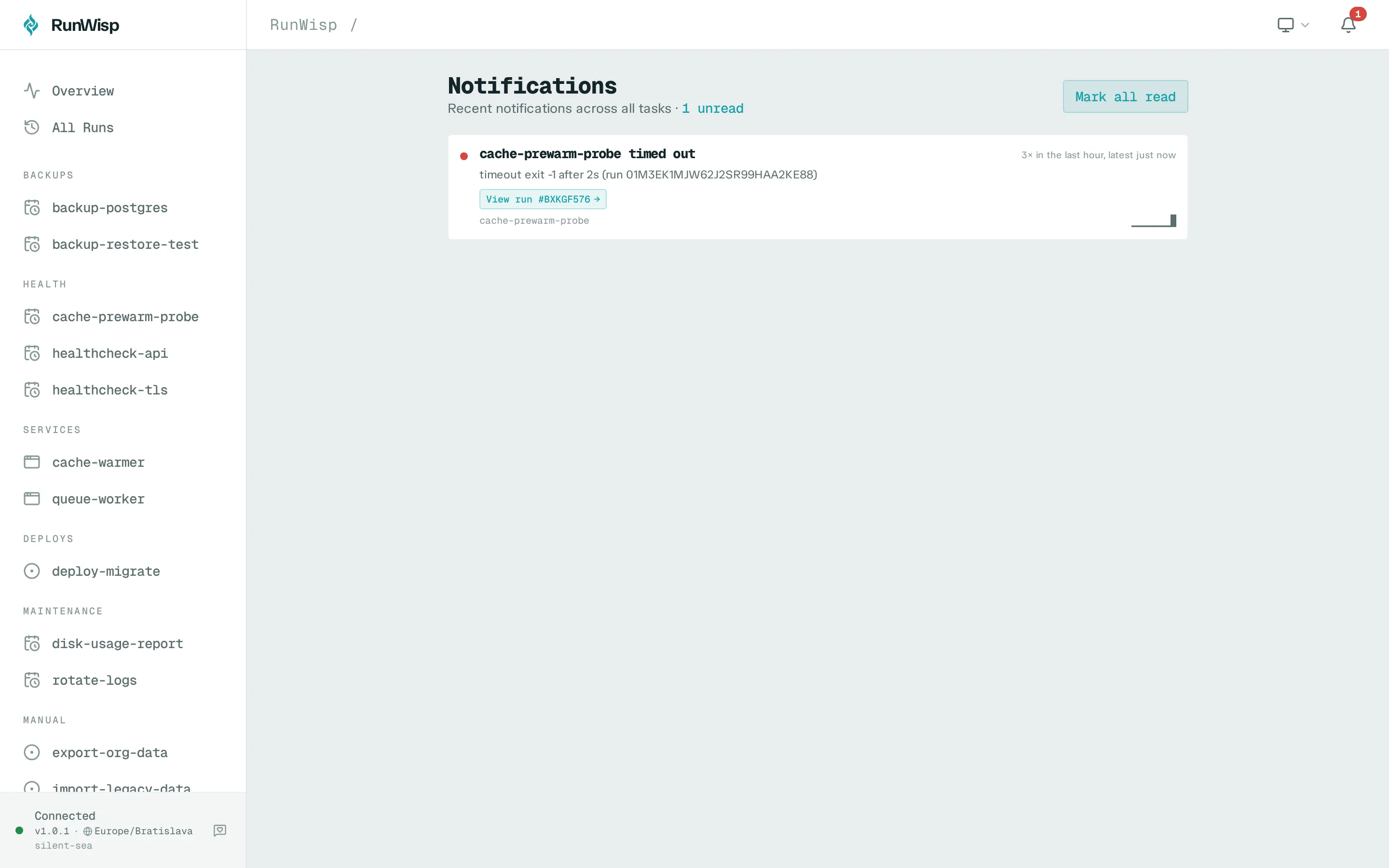

Full notifications page (/notifications)

The bell only shows ten. The page shows everything — paginated, with a “Load more” button. Same row layout, plus the unread count up top.

Connection-lost overlay

When the daemon stops responding (network blip, restart, SIGKILL), the UI overlays a Connection Lost panel:

• A spinning indicator while it retries.
• Time since the disconnect (Down for: 14s).
• Time since you were last reachable.
• The retry attempt counter, plus a countdown to the next automatic retry.
• A Retry now button.
• A collapsible details section with the last error message.

Auto-retry uses exponential backoff capped at 30 seconds. As soon as the daemon answers /health, the overlay dismisses itself and streams resume.

One-click launch from the TUI

The TUI’s Open Web UI button does more than print a URL — it asks the daemon for a short-lived launch ticket, opens http://<host>:<port>/?ticket=<value>, and the daemon converts the ticket into a session cookie. You arrive logged in, no password prompt. The cookie is HttpOnly, restricted to /api/, with SameSite=Strict — see the auth page for the attribute set.

What’s intentionally not in the Web UI

• No config editor. runwisp.toml is the source of truth and loaded at daemon startup. Edit in $EDITOR, restart.
• No notifier setup. Notifiers and routes are TOML.
• No user / role management. Single-operator model.
• No schedule editor. Tasks don’t get rescheduled from the UI.
• No service scaling UI. Change instances in TOML and restart.
• No log download / export. Use the REST API or the on-disk file.

The pattern, again: this is a control plane, not a configuration UI. The decisions live in TOML; the daemon enforces them; the dashboard shows the result.

Where to next

• Concepts: TUI tour — the same surface, in your terminal.
• Configuration overview — what to put in the TOML the dashboard is observing.
• Operations: auth — what the login is doing under the hood.
